STEREO JACK ADAPTER ASSEMBLY(for Console Box Front Side) REMOVAL

PROCEDURE

1. REMOVE REMOTE TOUCH ASSEMBLY

   Click here

2. REMOVE LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL

   Click here

3. REMOVE LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL

   Click here

4. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

   Click here

5. REMOVE INSTRUMENT CLUSTER FINISH PANEL ORNAMENT

   Click here

6. REMOVE CONSOLE PANEL SUB-ASSEMBLY

   Click here

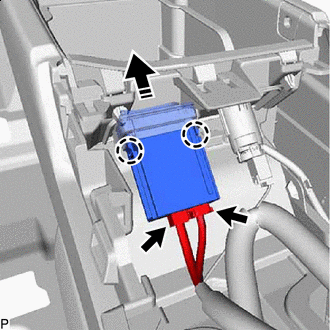

7. REMOVE NO. 1 STEREO JACK ADAPTER ASSEMBLY




   1.

      Remove in this Direction

      Disconnect the 2 connectors.

   2. Disengage the 2 claws and remove the No. 1 stereo jack adapter assembly as shown in the illustration.
