AUDIO AND VISUAL SYSTEM(for 8 Inch Display), Diagnostic DTC:B1579

DTC Code DTC Name
B1579 Voice Recognition Microphone Disconnected

DESCRIPTION

The radio receiver assembly and telephone microphone assembly are connected to each other using the microphone connection detection signal lines.

This DTC is stored when a microphone connection detection signal line is disconnected.

DTC No. Detection Item DTC Detection Condition Trouble Area
B1579 Voice Recognition Microphone Disconnected Microphone signal is lost
  • Telephone microphone assembly

  • Radio receiver assembly

  • Harness or connector

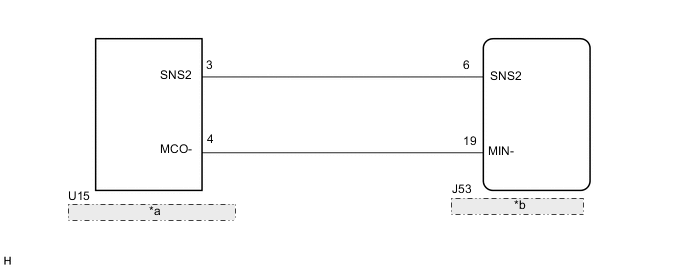

WIRING DIAGRAM

B005P0IE04
*a Telephone Microphone Assembly
*b Radio Receiver Assembly

PROCEDURE


  1. INSPECT RADIO RECEIVER ASSEMBLY


    1. B005QCBC19
      *a

      Component with harness connected

      (Radio Receiver Assembly)

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      J53-19 (MIN-) - Body ground Always Below 1 Ω
      Result
      Proceed to
      OK
      NG

    NG
    OK
  2. CHECK HARNESS AND CONNECTOR (RADIO RECEIVER ASSEMBLY - TELEPHONE MICROPHONE ASSEMBLY)


    1. Disconnect the J53 radio receiver assembly connector.

    2. Disconnect the U15 telephone microphone assembly connector.

    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      J53-6 (SNS2) - U15-3 (SNS2) Always Below 1 Ω
      J53-19 (MIN-) - U15-4 (MCO-) Always Below 1 Ω
      J53-6 (SNS2) or U15-3 (SNS2) - Body ground Always 10 kΩ or higher
      J53-19 (MIN-) or U15-4 (MCO-) - Body ground Always 10 kΩ or higher
      Result
      Proceed to
      OK
      NG

    NG
    OK
  3. INSPECT TELEPHONE MICROPHONE ASSEMBLY


    1. Remove the telephone microphone assembly.

      Click here

    2. B005ODSC03
      *a

      Component without harness connected

      (Telephone Microphone Assembly)

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      3 (SNS2) - 4 (MCO-) Always Below 1 Ω
      Result
      Proceed to
      OK
      NG

    OK
    NG
