AUDIO AND VISUAL SYSTEM(for 8 Inch Display) PARTS LOCATION

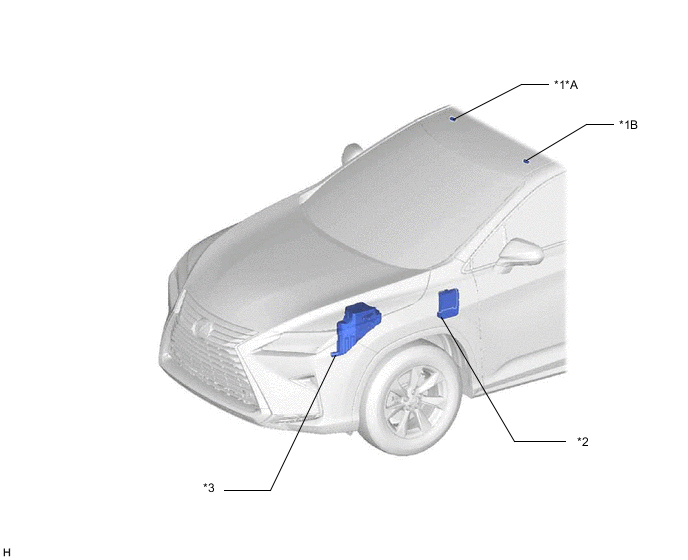

ILLUSTRATION
| *A | for RHD | *B | for LHD |
| *1 | TELEPHONE MICROPHONE ASSEMBLY | *2 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG1 NO. 1 FUSE (w/ Panoramic View Monitor System) - ECU-DCC NO. 2 FUSE (w/ Headup Display (Meter Mirror Sub-assembly)) - ECU-ACC FUSE - PANEL FUSE - METER FUSE - METER-IG2 FUSE |
| *3 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - AMP FUSE - RADIO NO. 2 FUSE - ECU-IG1 NO. 8 FUSE (w/ Headup Display (Meter Mirror Sub-assembly)) |
- | - |
ILLUSTRATION
| *A | for RHD | - | - |
| *1 | SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY | *2 | STEERING PAD SWITCH ASSEMBLY |
| *3 | RADIO RECEIVER ASSEMBLY | *4 | LEXUS DISPLAY AUDIO CONTROLLER - REMOTE OPERATION BOARD |
| *5 | NO. 1 STEREO JACK ADAPTER ASSEMBLY | *6 | COMBINATION METER ASSEMBLY |
| *7 | MULTI-DISPLAY ASSEMBLY | *8 | NAVIGATION ANTENNA ASSEMBLY (w/ Navigation Antenna Assembly) - GPS |
| *9 | ANTENNA CORD SUB-ASSEMBLY | *10 | HEADUP DISPLAY (METER MIRROR SUB-ASSEMBLY) (w/ Headup Display (Meter Mirror Sub-assembly)) |
| *11 | DLC3 | - | - |

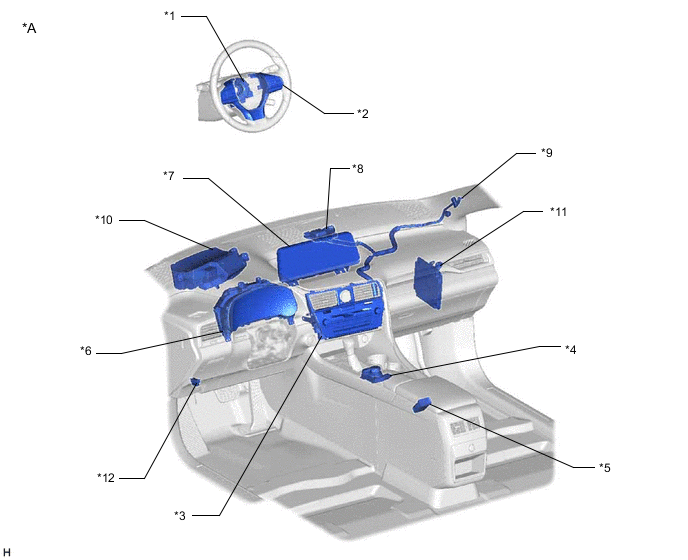

ILLUSTRATION
| *A | for LHD | - | - |
| *1 | SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY | *2 | STEERING PAD SWITCH ASSEMBLY |
| *3 | RADIO RECEIVER ASSEMBLY | *4 | LEXUS DISPLAY AUDIO CONTROLLER - REMOTE OPERATION BOARD |
| *5 | NO. 1 STEREO JACK ADAPTER ASSEMBLY | *6 | COMBINATION METER ASSEMBLY |
| *7 | MULTI-DISPLAY ASSEMBLY | *8 | NAVIGATION ANTENNA ASSEMBLY (w/ Navigation Antenna Assembly) - GPS |
| *9 | ANTENNA CORD SUB-ASSEMBLY | *10 | HEADUP DISPLAY (METER MIRROR SUB-ASSEMBLY) (w/ Headup Display (Meter Mirror Sub-assembly)) |
| *11 | PARKING ASSIST ECU (w/ Panoramic View Monitor System) | *12 | DLC3 |
ILLUSTRATION
| *1 | FRONT NO. 1 SPEAKER ASSEMBLY LH | *2 | FRONT NO. 2 SPEAKER ASSEMBLY LH |
| *3 | FRONT NO. 3 SPEAKER ASSEMBLY | *4 | REAR NO. 3 SPEAKER ASSEMBLY (except 9 Speakers) |
| *5 | REAR SPEAKER ASSEMBLY LH | *6 | FRONT NO. 1 SPEAKER ASSEMBLY RH |
| *7 | FRONT NO. 2 SPEAKER ASSEMBLY RH | *8 | REAR SPEAKER ASSEMBLY RH |
| *9 | REAR NO. 2 SPEAKER ASSEMBLY LH | *10 | REAR NO. 2 SPEAKER ASSEMBLY RH |
| *11 | STEREO COMPONENT AMPLIFIER ASSEMBLY | - | - |

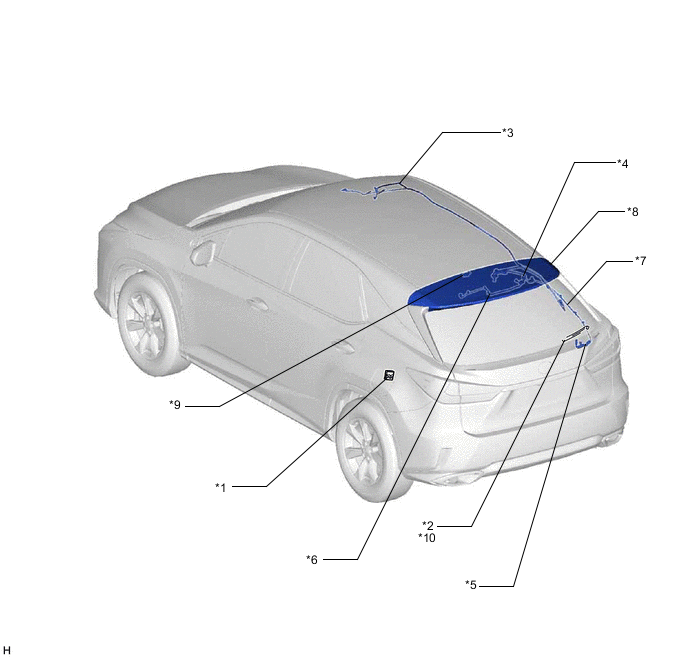

ILLUSTRATION
| *1 | RADIO SETTING CONDENSER (for Rear Window Defogger) | *2 | WINDOW GLASS ANTENNA WIRE |
| *3 | NO. 2 ANTENNA CORD SUB-ASSEMBLY | *4 | NO. 3 ANTENNA CORD SUB-ASSEMBLY |
| *5 | NO. 1 AMPLIFIER ANTENNA ASSEMBLY | *6 | NO. 5 ANTENNA CORD SUB-ASSEMBLY (w/ DAB Function) |
| *7 | NO. 4 ANTENNA CORD SUB-ASSEMBLY | *8 | REAR SPOILER SUB-ASSEMBLY - FM Main - AM - DAB (w/ DAB Function) |
| *9 | RADIO SETTING CONDENSER (for High Mount Stop Lamp) | *10 | - FM SUB |
