BRAKE BOOSTER(for LHD) COMPONENTS
ILLUSTRATION
| *1 | COWL SIDE TRIM BOARD LH | *2 | FRONT DOOR SCUFF PLATE LH |
| *3 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY | - | - |
ILLUSTRATION
| *1 | OUTER COWL TOP PANEL SUB-ASSEMBLY | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION
| *A | for 8AR-FTS | *B | for 2GR-FKS |
| *1 | BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY | *2 | ECM |
| *3 | ENGINE ROOM MAIN WIRE | *4 | FUEL VAPOR FEED HOSE ASSEMBLY |
| *5 | RESERVOIR BRACKET | *6 | ENGINE WIRE |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

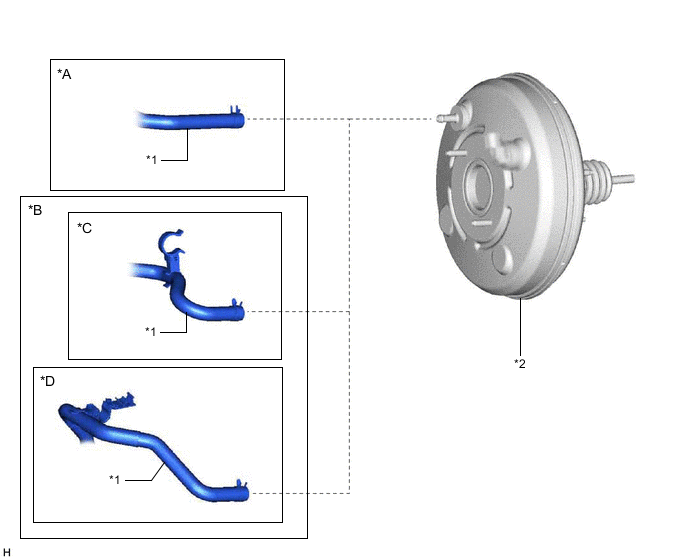

ILLUSTRATION
| *A | for 8AR-FTS | *B | for 2GR-FKS |
| *C | w/o Rear Air Conditioning System | *D | w/ Rear Air Conditioning System |
| *1 | UNION TO CHECK VALVE HOSE | *2 | BRAKE BOOSTER ASSEMBLY |

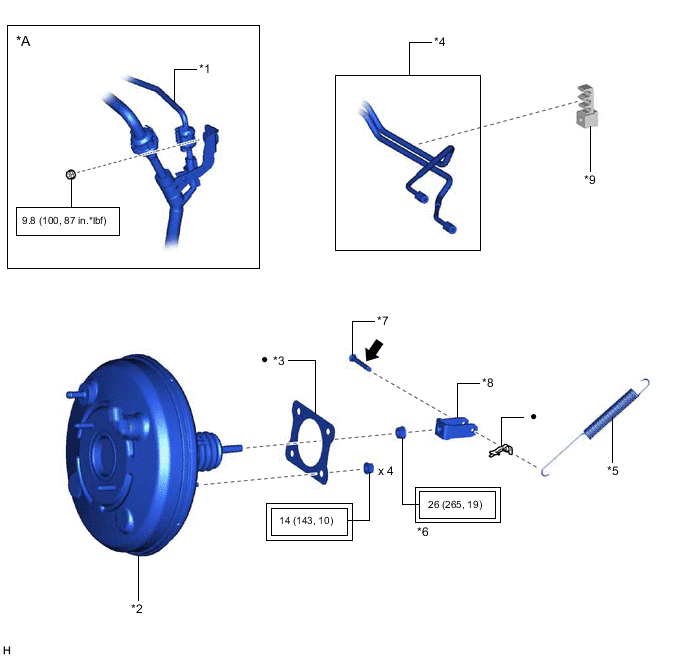

ILLUSTRATION
| *A | w/ Rear Air Conditioning System | - | - |
| *1 | AIR CONDITIONING HOSE AND ACCESSORY | *2 | BRAKE BOOSTER ASSEMBLY |
| *3 | BRAKE BOOSTER GASKET | *4 | BRAKE LINE |
| *5 | BRAKE PEDAL RETURN SPRING | *6 | LOCK NUT |
| *7 | PUSH ROD PIN | *8 | BRAKE MASTER CYLINDER PUSH ROD CLEVIS |
| *9 | BRAKE TUBE CLAMP | - | - |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | |
N*m (kgf*cm, ft.*lbf): Specified torque |
| ● | Non-reusable part |  |
Lithium soap base glycol grease |
ILLUSTRATION
| *A | for 8AR-FTS | *B | for 2GR-FKS |
| *1 | BRAKE VACUUM CHECK VALVE ASSEMBLY | *2 | VACUUM SENSOR ASSEMBLY |
| *3 | VACUUM WARNING SWITCH ASSEMBLY | *4 | CHECK VALVE GROMMET |
| ● | Non-reusable part | - | - |
