BRAKE BOOSTER(for LHD) COMPONENTS
ILLUSTRATION

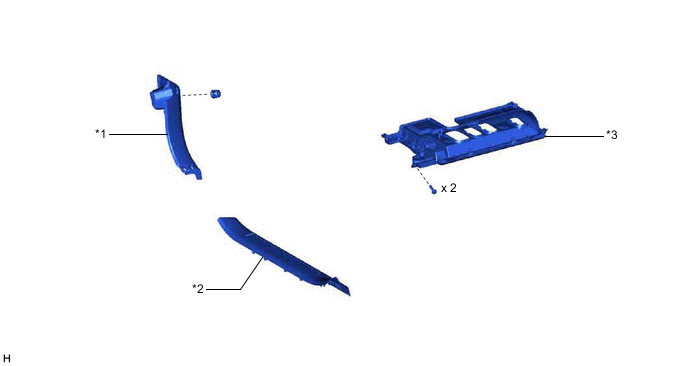

| *1 | COWL SIDE TRIM BOARD LH | *2 | FRONT DOOR SCUFF PLATE LH |
| *3 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY | - | - |
ILLUSTRATION

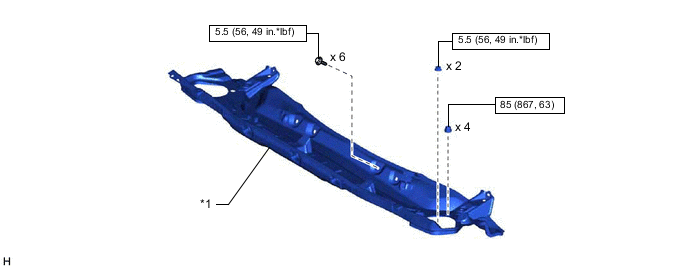

| *1 | OUTER COWL TOP PANEL SUB-ASSEMBLY | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION
| *A | for 8AR-FTS | *B | for 2GR-FKS |

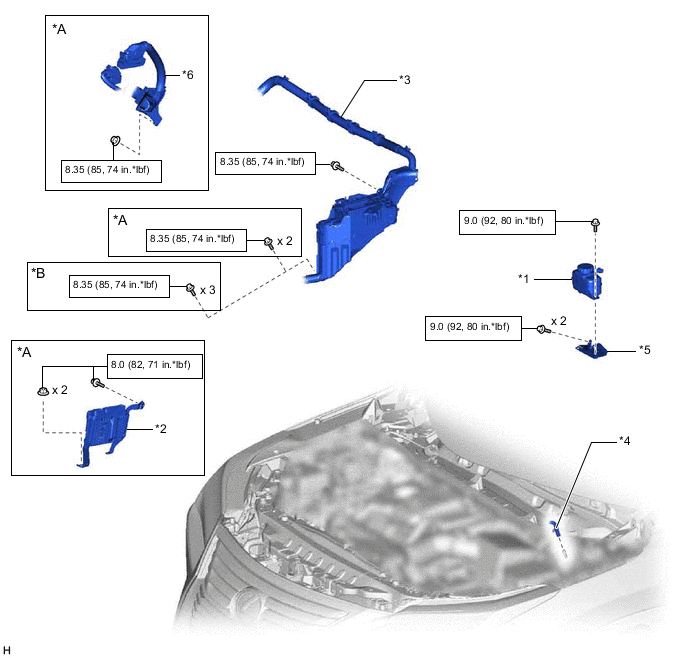

| *1 | BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY | *2 | ECM |
| *3 | ENGINE ROOM MAIN WIRE | *4 | FUEL VAPOR FEED HOSE ASSEMBLY |
| *5 | RESERVOIR BRACKET | *6 | ENGINE WIRE |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION
| *A | for 8AR-FTS | *B | for 2GR-FKS |

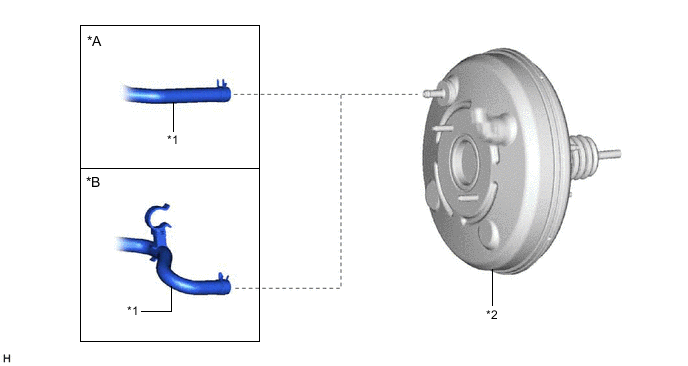

| *1 | UNION TO CHECK VALVE HOSE | *2 | BRAKE BOOSTER ASSEMBLY |
ILLUSTRATION

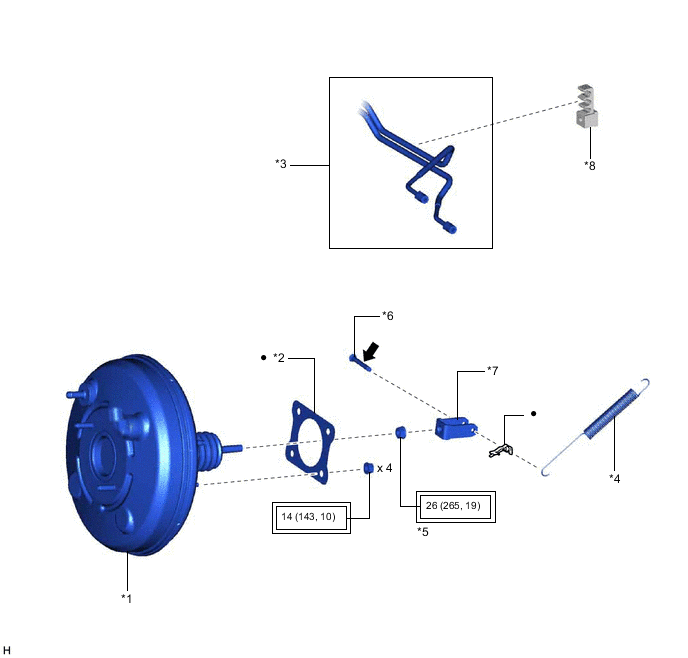

| *1 | BRAKE BOOSTER ASSEMBLY | *2 | BRAKE BOOSTER GASKET |
| *3 | BRAKE LINE | *4 | BRAKE PEDAL RETURN SPRING |
| *5 | LOCK NUT | *6 | PUSH ROD PIN |
| *7 | BRAKE MASTER CYLINDER PUSH ROD CLEVIS | *8 | BRAKE TUBE CLAMP |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | ● | Non-reusable part |
 |
Lithium soap base glycol grease | - | - |
ILLUSTRATION
| *A | for 8AR-FTS | *B | for 2GR-FKS |

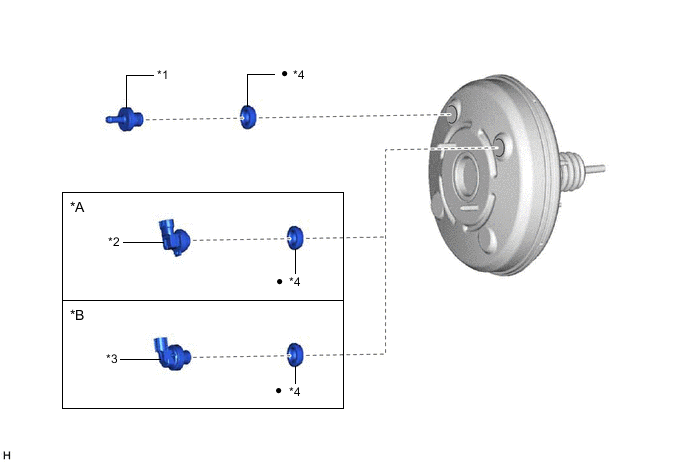

| *1 | BRAKE VACUUM CHECK VALVE ASSEMBLY | *2 | VACUUM SENSOR ASSEMBLY |
| *3 | VACUUM WARNING SWITCH ASSEMBLY | *4 | CHECK VALVE GROMMET |
| ● | Non-reusable part | - | - |
