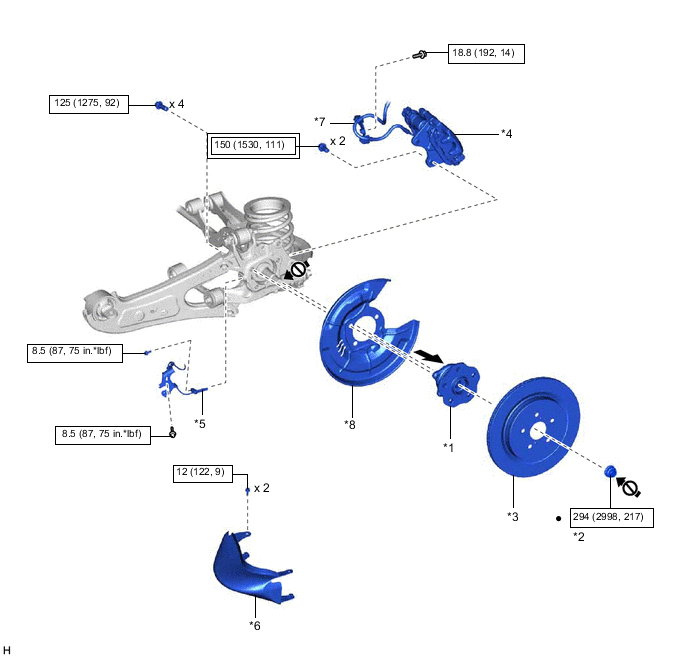

REAR AXLE CARRIER(for AWD) COMPONENTS
ILLUSTRATION
| *1 | REAR AXLE HUB AND BEARING ASSEMBLY | *2 | REAR AXLE SHAFT NUT |
| *3 | REAR DISC | *4 | REAR DISC BRAKE CALIPER ASSEMBLY |
| *5 | REAR SPEED SENSOR | *6 | REAR SUSPENSION ARM COVER |
| *7 | REAR FLEXIBLE HOSE | *8 | REAR DISC BRAKE DUST COVER SUB-ASSEMBLY |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) |  |
N*m (kgf*cm, ft.*lbf): Specified torque |
| ● | Non-reusable part |  |
Toyota Body Grease W |
 |
Do not apply lubricants to the threaded parts | - | - |

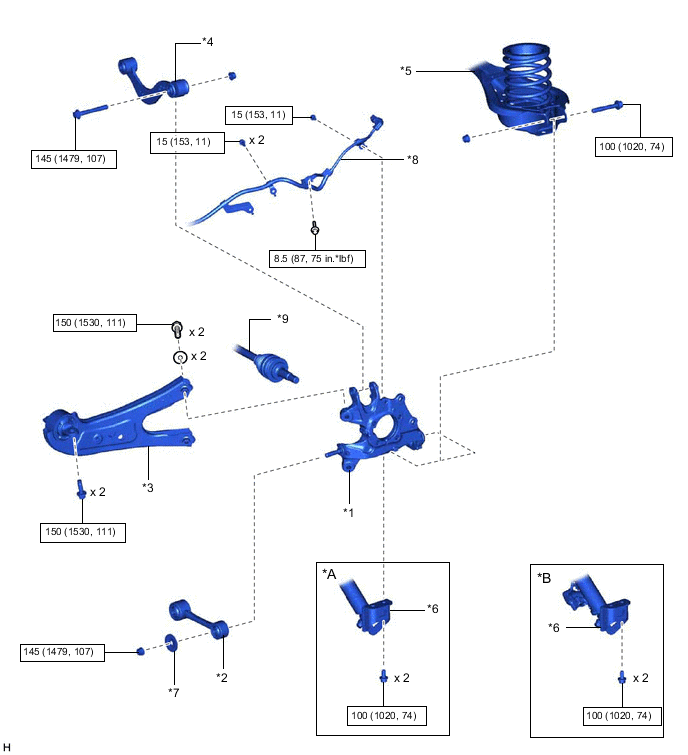

ILLUSTRATION
| *A | w/o AVS | *B | w/ AVS |
| *1 | REAR AXLE CARRIER SUB-ASSEMBLY | *2 | REAR NO. 1 SUSPENSION ARM ASSEMBLY |
| *3 | REAR TRAILING ARM ASSEMBLY | *4 | REAR UPPER CONTROL ARM ASSEMBLY |
| *5 | REAR NO. 2 SUSPENSION ARM ASSEMBLY | *6 | REAR LOWER SHOCK ABSORBER BRACKET SUB-ASSEMBLY |
| *7 | SPACER | *8 | NO. 2 PARKING BRAKE WIRE ASSEMBLY |
| *9 | REAR DRIVE SHAFT ASSEMBLY | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
