PURGE VALVE(w/ Canister Pump Module) REMOVAL

PROCEDURE

1. REMOVE V-BANK COVER SUB-ASSEMBLY

   Click here

2. REMOVE PURGE VALVE (PURGE VSV)



   1.

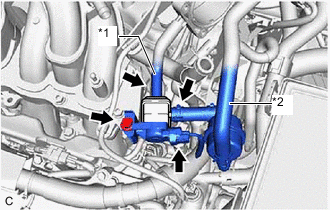

      *1	No. 1 Fuel Vapor Feed Hose
      *2	Fuel Vapor Feed Hose

      Disconnect the purge valve (purge VSV) connector.

   2. Slide the clip and disconnect the fuel vapor feed hose from the purge valve (purge VSV).

   3. Disconnect the No. 1 fuel vapor feed hose from the purge valve (purge VSV).

   4. Remove the bolt and purge valve (purge VSV) from the intake air surge tank assembly.
