CANISTER(w/ Canister Pump Module) COMPONENTS
ILLUSTRATION
| *1 | TAIL EXHAUST PIPE ASSEMBLY | *2 | EXHAUST PIPE GASKET |
| *3 | EXHAUST PIPE SUPPORT | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |

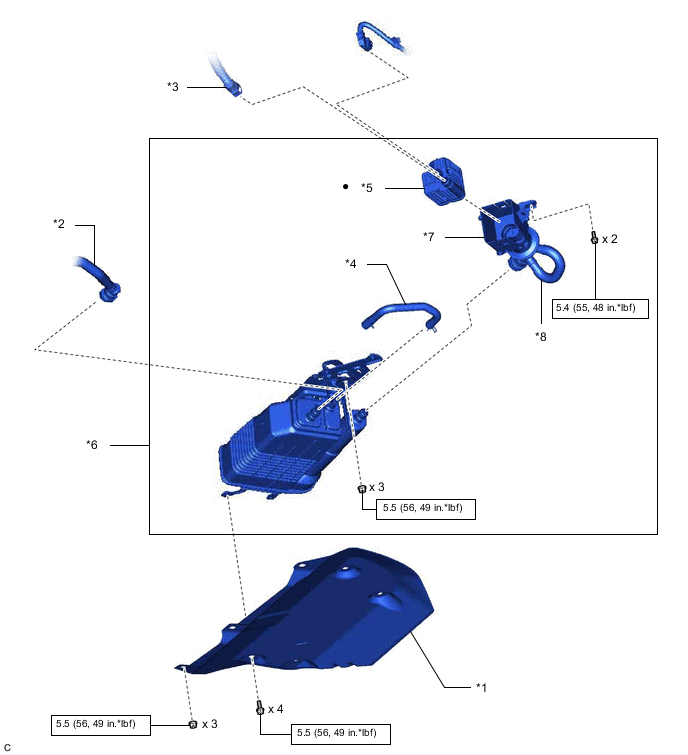

ILLUSTRATION
| *1 | CHARCOAL CANISTER PROTECTOR | *2 | VENT LINE HOSE |
| *3 | AIR LINE TUBE | *4 | PURGE LINE HOSE |
| *5 | CHARCOAL CANISTER LEAK DETECTION PUMP SUB-ASSEMBLY | *6 | CANISTER (CHARCOAL CANISTER ASSEMBLY) |
| *7 | NO. 1 CHARCOAL CANISTER FILTER | *8 | FUEL TANK VENT HOSE SUB-ASSEMBLY |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
