FUEL PUMP COMPONENTS

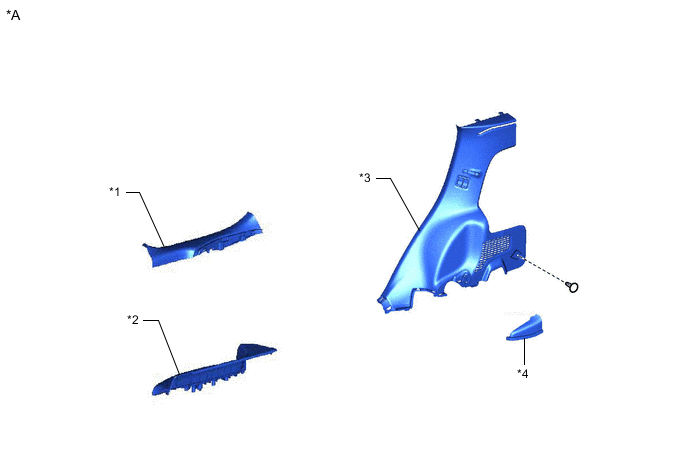

ILLUSTRATION
| *A | w/ Rear No. 2 Seat | - | - |
| *1 | REAR DOOR INSIDE SCUFF PLATE LH | *2 | REAR DOOR SCUFF PLATE LH |
| *3 | FRONT DECK SIDE TRIM COVER LH | *4 | REAR SEAT SIDE GARNISH LH |

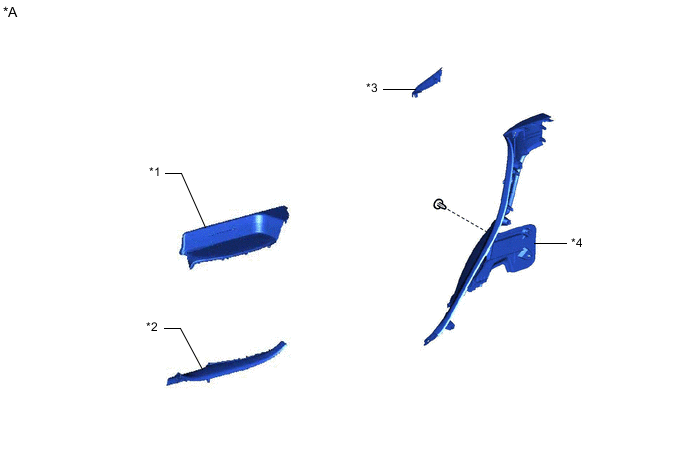

ILLUSTRATION
| *A | w/ Rear No. 2 Seat | - | - |
| *1 | REAR DOOR INSIDE SCUFF PLATE RH | *2 | REAR DOOR SCUFF PLATE RH |
| *3 | FRONT DECK SIDE TRIM COVER RH | *4 | REAR SEAT SIDE GARNISH RH |

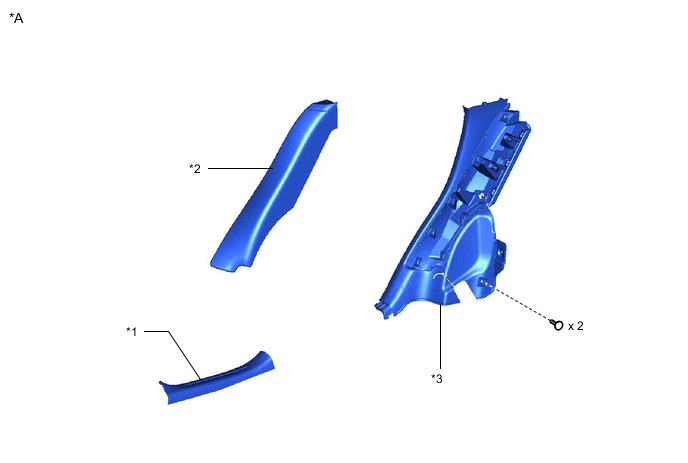

ILLUSTRATION
| *A | w/o Rear No. 2 Seat | - | - |
| *1 | REAR DOOR SCUFF PLATE LH | *2 | UPPER QUARTER TRIM PAD LH |
| *3 | REAR SEAT SIDE GARNISH LH | - | - |

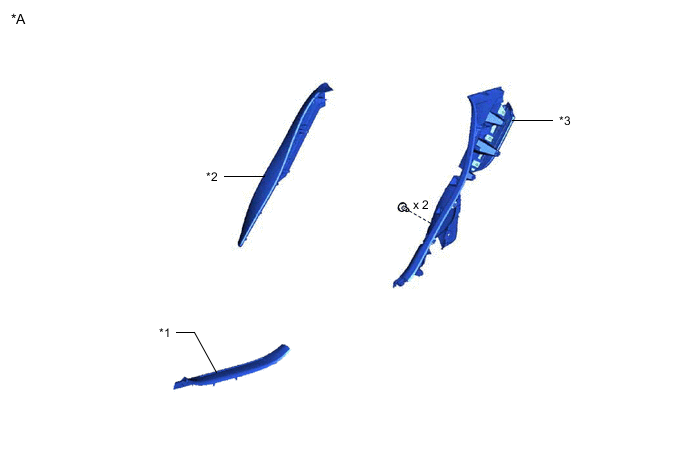

ILLUSTRATION
| *A | w/o Rear No. 2 Seat | - | - |
| *1 | REAR DOOR SCUFF PLATE RH | *2 | UPPER QUARTER TRIM PAD RH |
| *3 | REAR SEAT SIDE GARNISH RH | - | - |
ILLUSTRATION
| *A | w/ Rear No. 2 Seat | - | - |
| *1 | FRONT FLOOR CARPET ASSEMBLY | *2 | REAR FLOOR SILENCER |
| *3 | REAR NO. 1 FLOOR SILENCER PAD | *4 | REAR NO. 2 FLOOR SILENCER PAD |
| *5 | REAR NO. 2 FLOOR SILENCER | *6 | NO. 3 DASH PANEL INSULATOR PLATE |
| *7 | REAR FLOOR CARPET ASSEMBLY | - | - |

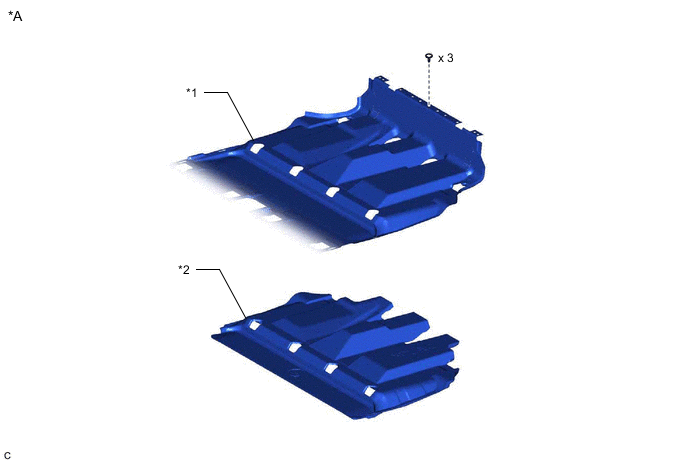

ILLUSTRATION
| *A | w/o Rear No. 2 Seat | - | - |
| *1 | FRONT FLOOR CARPET ASSEMBLY | *2 | REAR FLOOR SILENCER |
ILLUSTRATION
| *1 | FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY | *2 | FUEL TANK MAIN TUBE SUB-ASSEMBLY |
| *3 | REAR FLOOR SERVICE HOLE COVER | *4 | FUEL PUMP GAUGE RETAINER |
| *5 | TUBE JOINT CLIP | *6 | FUEL SUCTION TUBE SET GASKET |
| *7 | BUTYL TAPE | - | - |
| ● | Non-reusable part | - | - |
ILLUSTRATION
| *1 | FUEL PUMP | *2 | FUEL SENDER GAUGE ASSEMBLY |
| *3 | NO. 1 FUEL SUB-TANK | *4 | FUEL PUMP HARNESS |
| *5 | FUEL PUMP FILTER | *6 | FUEL PUMP SPACER |
| *7 | O-RING | *8 | FUEL SUCTION PLATE SUB-ASSEMBLY |
| *9 | FUEL PUMP FILTER HOSE | *10 | SPRING |
| *11 | E-RING | *12 | FUEL SUCTION PLATE SHAFT |
| ● | Non-reusable part | - | - |
