FUEL INJECTOR(for Port Injection) COMPONENTS
ILLUSTRATION
| *1 | NO. 1 AIR TUBE | *2 | FUEL PUMP PROTECTOR |
| *3 | NO. 2 FUEL VAPOR FEED HOSE | *4 | FUEL TUBE SUB-ASSEMBLY |
| *5 | NO. 2 FUEL TUBE SUB-ASSEMBLY | *6 | NO. 3 VENTILATION HOSE |
| *7 | VACUUM SWITCHING VALVE HOSE ASSEMBLY | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

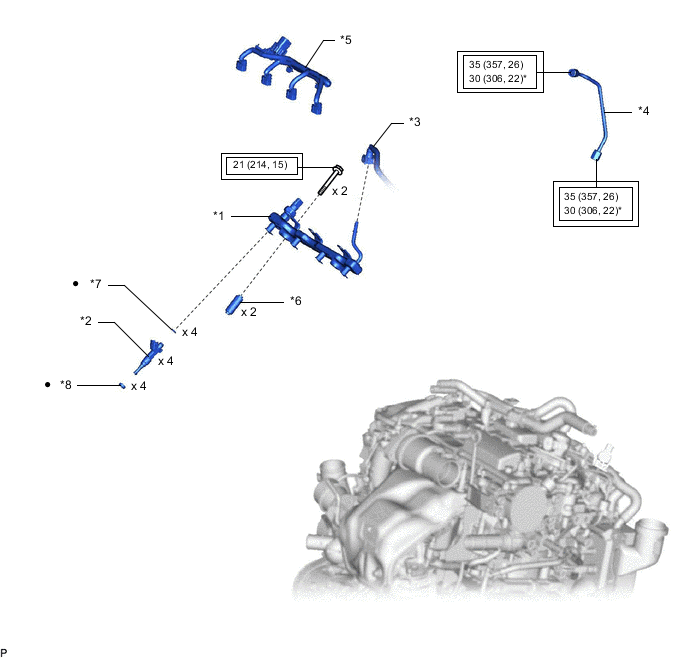

ILLUSTRATION
| *1 | FUEL DELIVERY PIPE | *2 | PORT FUEL INJECTOR ASSEMBLY |
| *3 | FUEL TUBE SUB-ASSEMBLY | *4 | NO. 1 FUEL PIPE SUB-ASSEMBLY |
| *5 | NO. 6 ENGINE WIRE | *6 | FUEL DELIVERY SPACER |
| *7 | O-RING | *8 | INJECTOR VIBRATION INSULATOR |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | * | For use with a union nut wrench |
| ● | Non-reusable part | - | - |
