CAMSHAFT OIL CONTROL VALVE(for Bank 2) ON-VEHICLE INSPECTION

PROCEDURE


  1. REMOVE CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY

    Click here

  2. INSPECT CAMSHAFT TIMING GEAR BOLT


    1. for intake side:

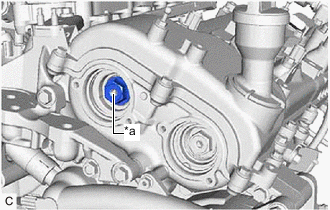

      1. A01VUPRC01
        *a Plunger

        Check the stroke of the plunger in the center of the camshaft timing gear bolt.

        Standard Stroke
        4.5 mm (0.177 in.) or more

        Tech Tips

        When pressing the plunger, there may be a stepped feeling. This is not a malfunction.

        If the result is not as specified, replace the camshaft timing gear bolt.

    2. for exhaust side:

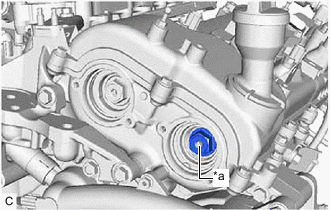

      1. A01VVVHC01
        *a Plunger

        Check the stroke of the plunger in the center of the camshaft timing gear bolt.

        Standard Stroke
        2.2 mm (0.0866 in.) or more

        Tech Tips

        When pressing the plunger, there may be a stepped feeling. This is not a malfunction.

        If the result is not as specified, replace the camshaft timing gear bolt.

  3. INSTALL CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY

    Click here
