FRONT SUSPENSION MEMBER COMPONENTS
ILLUSTRATION

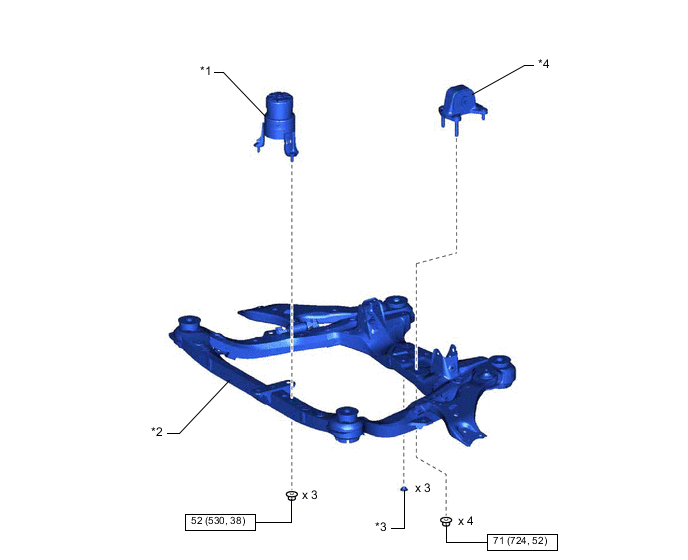

| *1 | FRONT ENGINE MOUNTING INSULATOR | *2 | FRONT FRAME ASSEMBLY |
| *3 | HOLE PLUG | *4 | REAR ENGINE MOUNTING INSULATOR |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION

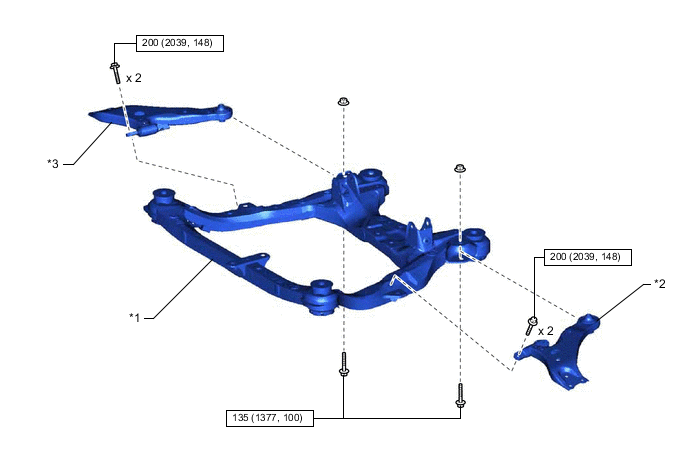

| *1 | FRONT FRAME ASSEMBLY | *2 | FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY LH |
| *3 | FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY RH | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION

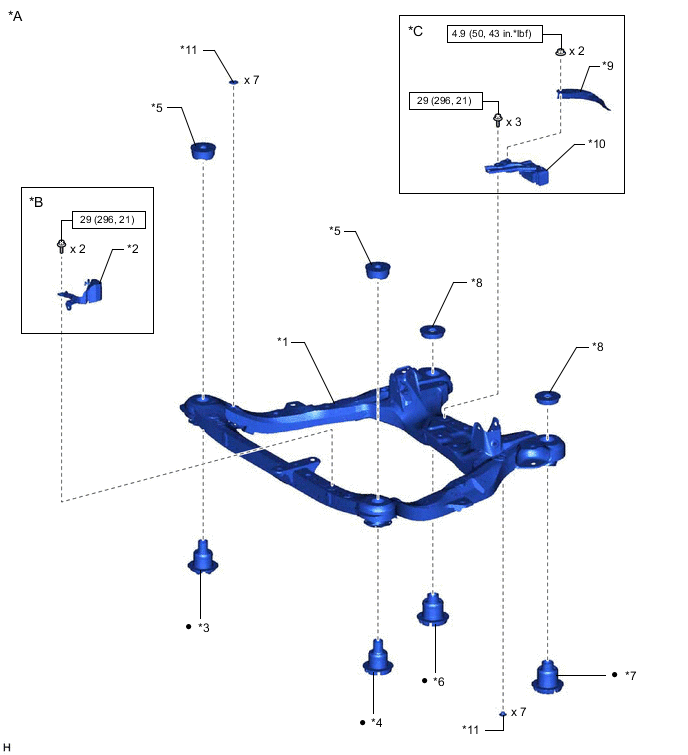

| *A | for Type A | *B | for 2GR-FKS 2WD |
| *C | except 2GR-FKS AWD | - | - |
| *1 | FRONT FRAME ASSEMBLY | *2 | FRONT NO. 2 SUSPENSION MEMBER DYNAMIC DAMPER |
| *3 | FRONT SUSPENSION MEMBER BODY MOUNTING FRONT CUSHION | *4 | FRONT SUSPENSION MEMBER BODY MOUNTING FRONT CUSHION LH |
| *5 | FRONT SUSPENSION MEMBER BODY MOUNTING FRONT STOPPER | *6 | FRONT SUSPENSION MEMBER BODY MOUNTING REAR CUSHION |
| *7 | FRONT SUSPENSION MEMBER BODY MOUNTING REAR CUSHION LH | *8 | FRONT SUSPENSION MEMBER BODY MOUNTING REAR STOPPER |
| *9 | FRONT SUSPENSION MEMBER DUMPER PLATE | *10 | FRONT SUSPENSION MEMBER DYNAMIC DAMPER |
| *11 | HOLE PLUG | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
ILLUSTRATION

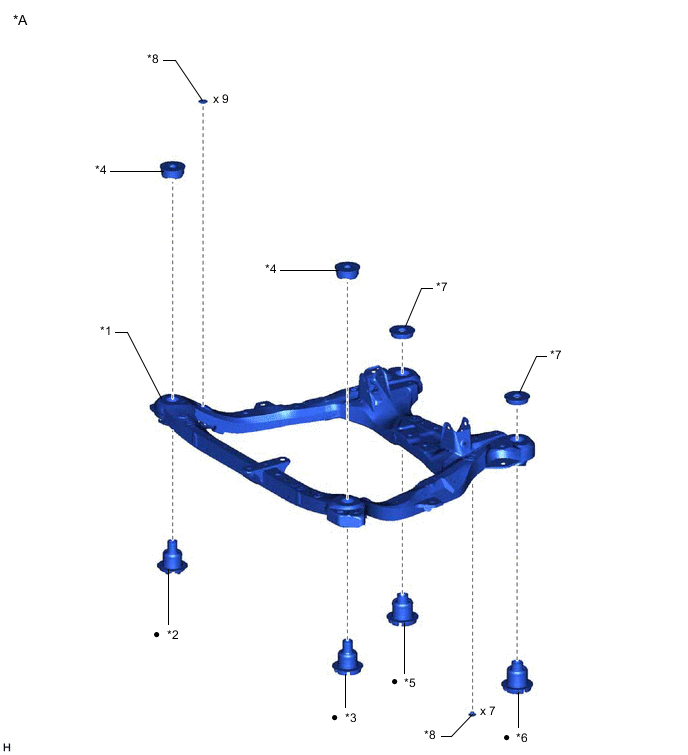

| *A | for Type B | - | - |
| *1 | FRONT FRAME ASSEMBLY | *2 | FRONT SUSPENSION MEMBER BODY MOUNTING FRONT CUSHION |
| *3 | FRONT SUSPENSION MEMBER BODY MOUNTING FRONT CUSHION LH | *4 | FRONT SUSPENSION MEMBER BODY MOUNTING FRONT STOPPER |
| *5 | FRONT SUSPENSION MEMBER BODY MOUNTING REAR CUSHION | *6 | FRONT SUSPENSION MEMBER BODY MOUNTING REAR CUSHION LH |
| *7 | FRONT SUSPENSION MEMBER BODY MOUNTING REAR STOPPER | *8 | HOLE PLUG |
| ● | Non-reusable part | - | - |
