FRONT LOWER SUSPENSION ARM COMPONENTS

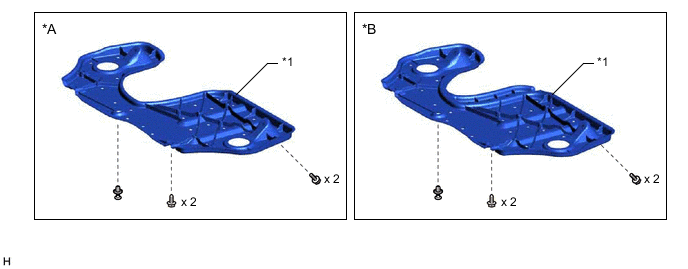

ILLUSTRATION
| *A | for 8AR-FTS | *B | for 2GR-FKS |
| *1 | NO. 2 ENGINE UNDER COVER | - | - |

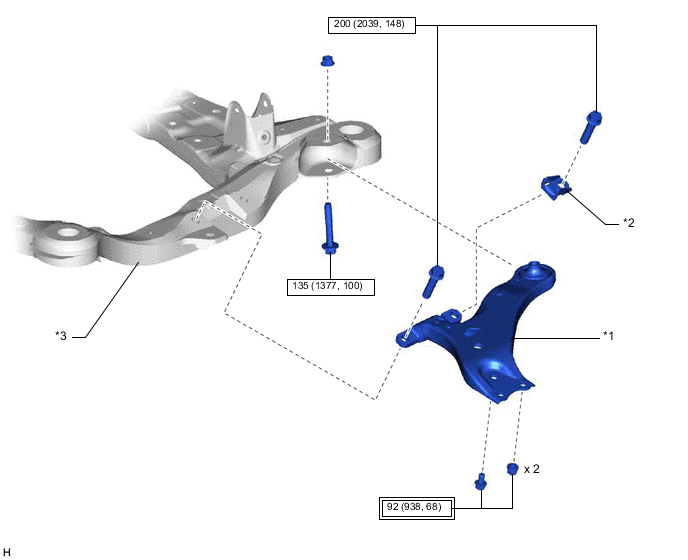

ILLUSTRATION
| *1 | FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY | *2 | FRONT LOWER ARM BUSHING STOPPER |
| *3 | FRONT FRAME ASSEMBLY | - | - |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) |  |
N*m (kgf*cm, ft.*lbf): Specified torque |
