FRONT SHOCK ABSORBER COMPONENTS

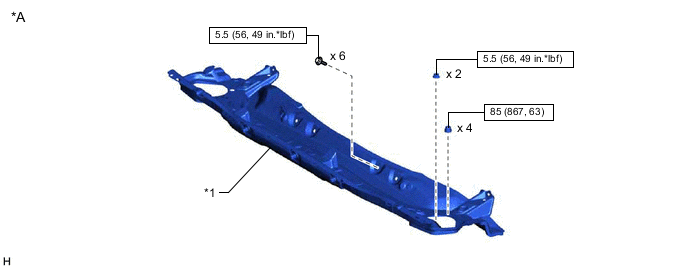

ILLUSTRATION
| *A | for LHD | - | - |
| *1 | OUTER COWL TOP PANEL SUB-ASSEMBLY | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION
| *A | for RHD | - | - |
| *1 | OUTER COWL TOP PANEL SUB-ASSEMBLY | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

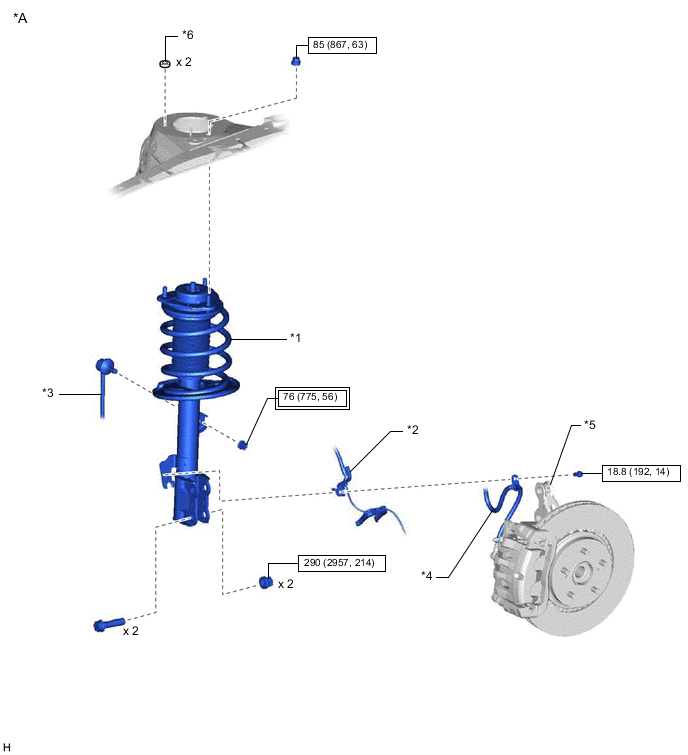

ILLUSTRATION
| *A | w/o AVS | - | - |
| *1 | FRONT SHOCK ABSORBER WITH COIL SPRING | *2 | FRONT SPEED SENSOR |
| *3 | FRONT STABILIZER LINK ASSEMBLY | *4 | FRONT FLEXIBLE HOSE |
| *5 | STEERING KNUCKLE | *6 | SPACER |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | |
N*m (kgf*cm, ft.*lbf): Specified torque |

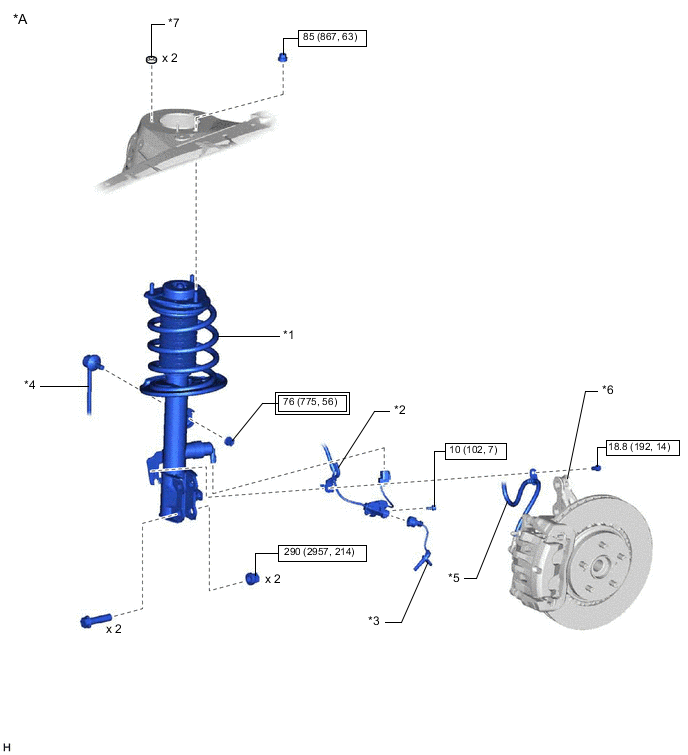

ILLUSTRATION
| *A | w/ AVS | - | - |
| *1 | FRONT SHOCK ABSORBER WITH COIL SPRING | *2 | FRONT SKID CONTROL SENSOR WIRE |
| *3 | FRONT SPEED SENSOR | *4 | FRONT STABILIZER LINK ASSEMBLY |
| *5 | FRONT FLEXIBLE HOSE | *6 | STEERING KNUCKLE |
| *7 | SPACER | - | - |
| |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | |
N*m (kgf*cm, ft.*lbf): Specified torque |

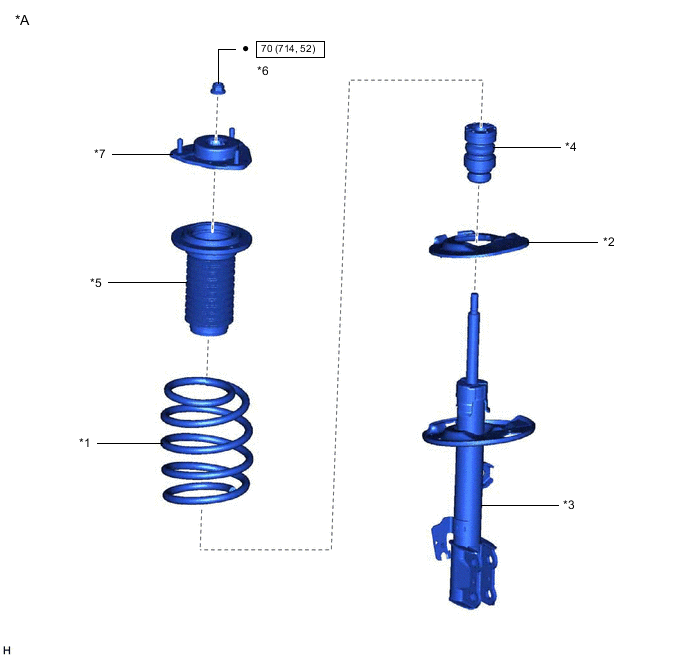

ILLUSTRATION
| *A | w/o AVS | - | - |
| *1 | FRONT COIL SPRING | *2 | FRONT LOWER COIL SPRING INSULATOR |
| *3 | FRONT SHOCK ABSORBER ASSEMBLY | *4 | FRONT SPRING BUMPER |
| *5 | FRONT SPRING SEAT SUB-ASSEMBLY WITH INSULATOR | *6 | FRONT SUPPORT TO FRONT SHOCK ABSORBER NUT |
| *7 | FRONT SUSPENSION SUPPORT SUB-ASSEMBLY | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
ILLUSTRATION
| *A | w/ AVS | - | - |
| *1 | FRONT COIL SPRING | *2 | FRONT LOWER COIL SPRING INSULATOR |
| *3 | FRONT SHOCK ABSORBER ASSEMBLY | *4 | FRONT SPRING BUMPER |
| *5 | FRONT SPRING SEAT SUB-ASSEMBLY WITH INSULATOR | *6 | FRONT SUPPORT TO FRONT SHOCK ABSORBER NUT |
| *7 | FRONT SUSPENSION SUPPORT SUB-ASSEMBLY | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
