STEERING PAD SWITCH REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the steering pad switch assembly removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replacement Part or Procedure Necessary Procedure Effect/Inoperative when not Performed Link
Disconnect cable from negative battery terminal Memorize steering angle neutral point Parking assist monitor system

Click here

LKA/LDA system

Click here

Pre-crash safety system
Adaptive high beam system
Reset power trunk lid Power trunk lid system

Click here

PROCEDURE


  1. REMOVE HORN BUTTON ASSEMBLY

    Click here

  2. REMOVE CRUISE CONTROL MAIN SWITCH

    Click here

  3. REMOVE STEERING PAD SWITCH ASSEMBLY


    1. Disconnect the steering pad switch connector from the spiral cable with sensor sub-assembly.

    2. B002EV1

      w/o Steering Wheel Vibration:


      1. Disengage the steering pad switch connector clamp from the lower steering wheel boss cover.

    3. Disconnect the steering pad switch connector from the No. 1 switch wire.

    4. Remove the 2 screws.

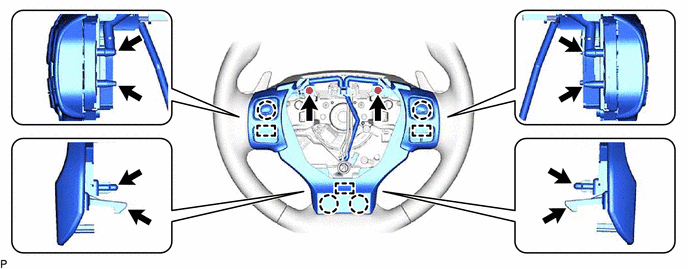

      B002E41

    5. Disengage the the 3 guide pins and 4 claws and remove the switch assembly.
