DYNAMIC RADAR CRUISE CONTROL SYSTEM Cruise Control Switch Circuit

DESCRIPTION

The cruise control main switch is used to turn the dynamic radar cruise control system on and off, as well as operate 7 functions: SET, - (COAST), TAP-DOWN, RES (RESUME), + (ACCEL), TAP-UP and CANCEL. The SET, TAP-DOWN and - (COAST) functions, and the RES (RESUME), TAP-UP and + (ACCEL) functions are operated with the same switch. The cruise control main switch contains momentary type contacts for each function. The contacts close only while the cruise control main switch is being operated in the direction of the relative function arrow, and open when the cruise control main switch is released. The voltage at the terminal of the hybrid vehicle control ECU assembly changes as each of the different contacts open or close. The hybrid vehicle control ECU assembly reads this voltage and controls the SET, - (COAST), RES (RESUME), + (ACCEL), and CANCEL functions accordingly.

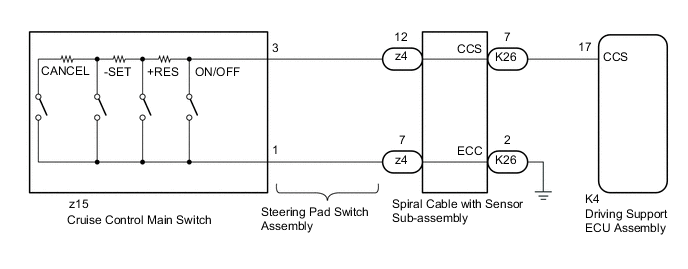

WIRING DIAGRAM

B002CLXE03

CAUTION / NOTICE / HINT

Note


  • The vehicle is equipped with a Supplemental Restraint System (SRS) which includes components such as airbags. Before servicing (including removal or installation of parts), be sure to read the precaution for Supplemental Restraint System.

    Click here

  • When replacing the driving support ECU assembly, always replace it with a new one. If a driving support ECU assembly which was installed to another vehicle is used, the information stored in the driving support ECU assembly will not match the information from the vehicle. As a result, a DTC may be stored.

PROCEDURE


  1. READ VALUE USING GTS


    1. Connect the GTS to the DLC3.

    2. Turn the engine switch on (IG).

    3. Turn the GTS on.

    4. Enter the following menus: Powertrain / Radar Cruise / Data List.

    5. Read the Data List according to the display on the GTS.


      Powertrain > Radar Cruise > Data List
      Tester Display Measurement Item Range Normal Condition Diagnostic Note
      Cruise Control Main Switch Cruise control switch main signal ON or OFF

      ON: Cruise control main switch (ON/OFF button) pushed

      OFF: Cruise control main switch (ON/OFF button) released

      		 -
      RES/ACC Switch +/RES switch signal ON or OFF

      ON: +/RES switch on

      OFF: +/RES switch off

      		 -
      SET/COAST Switch -/SET switch signal ON or OFF

      ON: -/SET switch on

      OFF: -/SET switch off

      		 -

      Powertrain > Radar Cruise > Data List
      Tester Display
      Cruise Control Main Switch
      RES/ACC Switch
      SET/COAST Switch
      OK
      The Data List items shown in the table change according to the operation of the cruise control main switch.
      Result
      Proceed to
      OK
      NG

    OK

    PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Click here

    NG

  2. INSPECT CRUISE CONTROL MAIN SWITCH


    1. Remove the cruise control main switch.

      Click here

    2. Inspect the cruise control switch.

      Click here

      Result
      Proceed to
      OK
      NG

    NG

    REPLACE CRUISE CONTROL MAIN SWITCH Click here

    OK

  3. CHECK STEERING PAD SWITCH ASSEMBLY


    1. Remove the steering pad switch assembly.

      Click here

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      z4-12 - z15-3 Always Below 1 Ω
      z4-7 - z15-1 Always Below 1 Ω
      z4-12 or z15-3 - Body ground Always 10 kΩ or higher
      z4-7 or z15-1 - Body ground Always 10 kΩ or higher
      Result
      Proceed to
      OK
      NG

    NG

    REPLACE STEERING PAD SWITCH ASSEMBLY Click here

    OK

  4. INSPECT SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY


    1. Remove the spiral cable with sensor sub-assembly.

      Click here

    2. Inspect the spiral cable with sensor sub-assembly.

      Click here

      Result
      Proceed to
      OK
      NG

    NG

    REPLACE SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY Click here

    OK

  5. CHECK HARNESS AND CONNECTOR (SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY - DRIVING SUPPORT ECU ASSEMBLY AND BODY GROUND)


    1. Disconnect the K26 spiral cable with sensor sub-assembly connector.

    2. Disconnect the K4 driving support ECU assembly connector.

    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      K26-7 (CCS) - K4-17 (CCS) Always Below 1 Ω
      K26-2 (ECC) - Body ground Always Below 1 Ω
      K26-7 (CCS) or K4-17 (CCS) - Body ground Always 10 kΩ or higher
      Result
      Proceed to
      OK
      NG

    OK

    REPLACE DRIVING SUPPORT ECU ASSEMBLY Click here

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
