SHIFT PADDLE SWITCH COMPONENTS

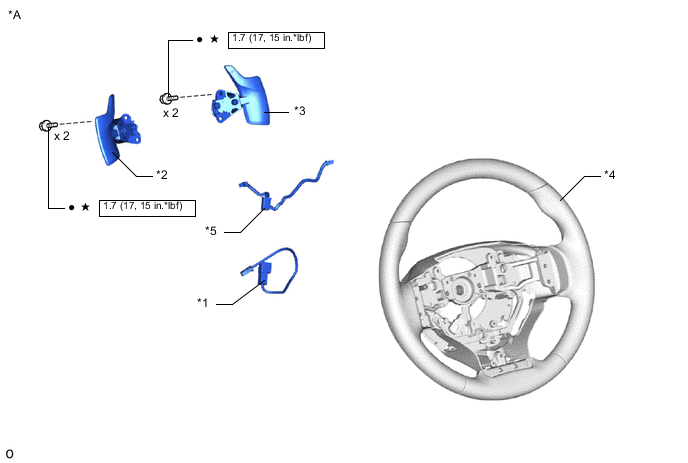

ILLUSTRATION
| *A | w/o Lane Departure Alert System | - | - |
| *1 | NO. 2 SWITCH WIRE | *2 | SHIFT PADDLE SWITCH LH(TRANSMISSION SHIFT SWITCH ASSEMBLY) |
| *3 | SHIFT PADDLE SWITCH RH(TRANSMISSION SHIFT SWITCH ASSEMBLY) | *4 | STEERING WHEEL ASSEMBLY |
| *5 | NO. 1 SWITCH WIRE | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
| ★ | Precoated part | - | - |

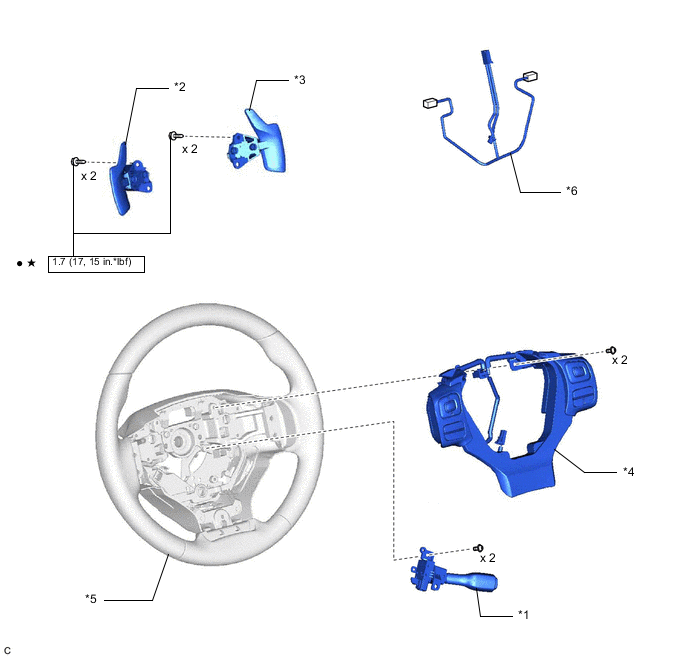

ILLUSTRATION
| *A | w/ Lane Departure Alert System | - | - |
| *1 | CRUISE CONTROL MAIN SWITCH | *2 | SHIFT PADDLE SWITCH LH(TRANSMISSION SHIFT SWITCH ASSEMBLY) |
| *3 | SHIFT PADDLE SWITCH RH(TRANSMISSION SHIFT SWITCH ASSEMBLY) | *4 | STEERING PAD SWITCH ASSEMBLY |
| *5 | STEERING WHEEL ASSEMBLY | *6 | NO. 1 SWITCH WIRE |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
| ★ | Precoated part | - | - |
