LIN COMMUNICATION SYSTEM PARTS LOCATION
ILLUSTRATION

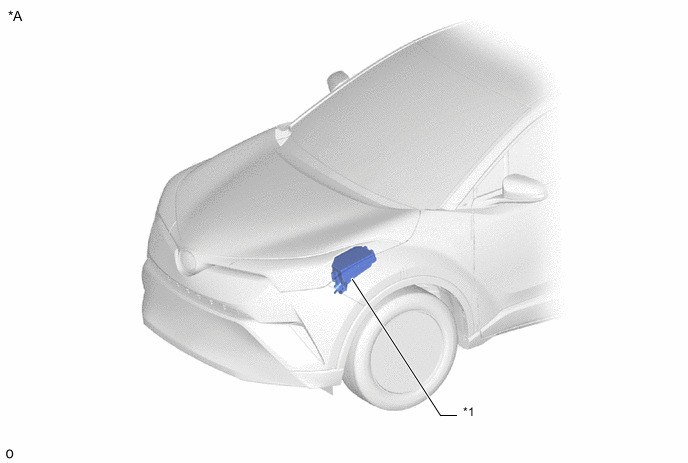

| *A | w/ Double Locking System | - | - |
| *1 | NO. 1 ENGINE ROOM RELAY BLOCK - DOOR DBL/L FUSE |
- | - |
ILLUSTRATION

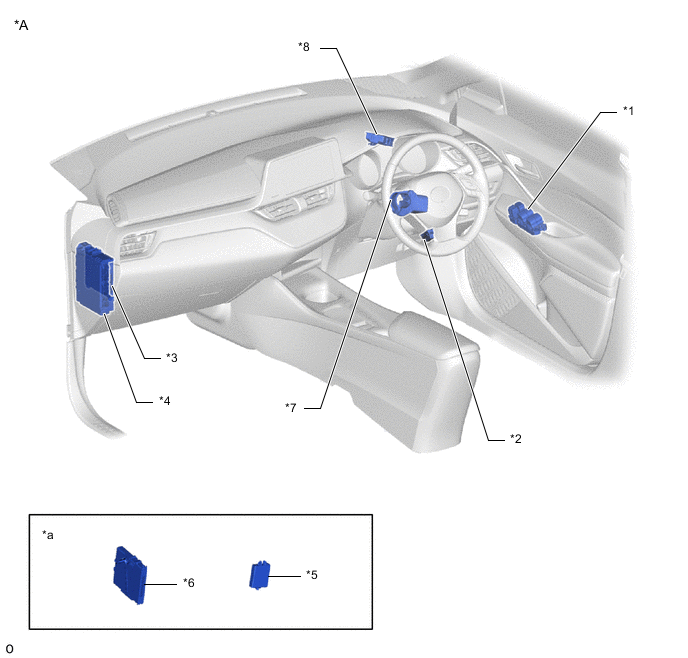

| *A | for LHD | *B | w/ Double Locking System |
| *1 | MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY | *2 | DLC3 |
| *3 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *4 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-B NO. 1 FUSE - ECU-B NO. 2 FUSE - POWER FUSE - DOOR FUSE - DOOR R/L FUSE - DOOR R/R FUSE - AM2 FUSE - STRG LOCK FUSE - ECU-DCC NO. 2 FUSE |
| *5 | ID CODE BOX (IMMOBILISER CODE ECU) | *6 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
| *7 | STEERING LOCK ECU (STEERING LOCK ACTUATOR OR UPPER BRACKET ASSEMBLY) | *8 | DOUBLE LOCK DOOR CONTROL RELAY ASSEMBLY |
| *a | Refer to Service Bulletin for the installation position of the parts. | - | - |
ILLUSTRATION

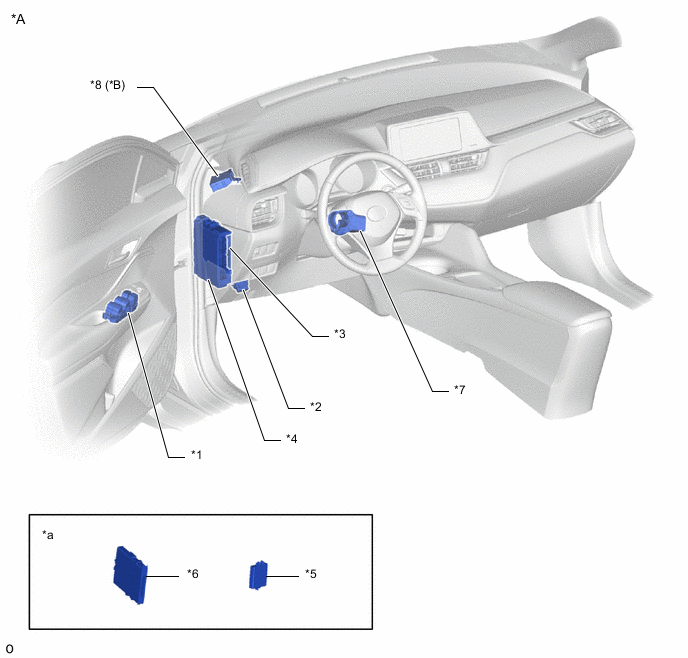

| *A | for RHD | - | - |
| *1 | MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY | *2 | DLC3 |
| *3 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *4 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-B NO. 1 FUSE - ECU-B NO. 2 FUSE - POWER FUSE - DOOR FUSE - DOOR R/L FUSE - DOOR R/R FUSE - AM2 FUSE - STRG LOCK FUSE - ECU-DCC NO. 2 FUSE |
| *5 | ID CODE BOX (IMMOBILISER CODE ECU) | *6 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
| *7 | STEERING LOCK ECU (STEERING LOCK ACTUATOR OR UPPER BRACKET ASSEMBLY) | *8 | DOUBLE LOCK DOOR CONTROL RELAY ASSEMBLY |
| *a | Refer to Service Bulletin for the installation position of the parts. | - | - |
ILLUSTRATION

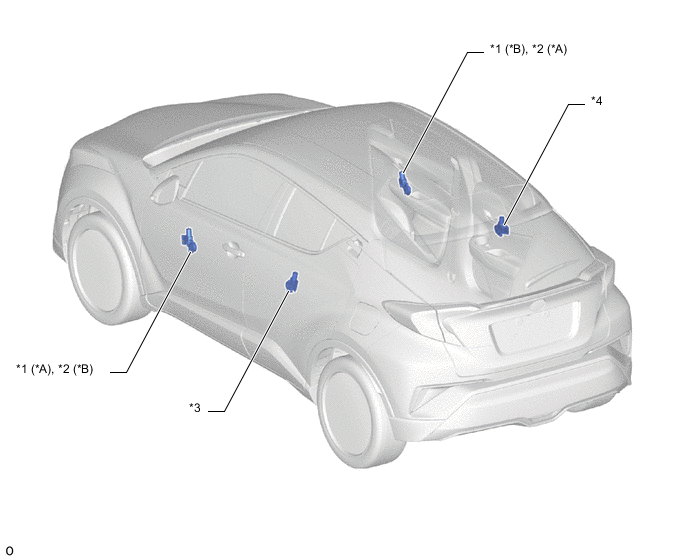

| *A | for LHD | *B | for RHD |
| *1 | POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Driver Door) | *2 | POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Front Passenger Door) |
| *3 | POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Rear LH Door) | *4 | POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Rear RH Door) |
