INTEGRATION RELAY INSTALLATION

Info Added 2017-10-06

PROCEDURE


  1. INSTALL NO. 1 INTEGRATION RELAY


    1. Connect the 2 connectors.

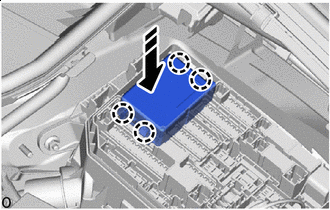

    2. A001PAPC01
      B0048R7 Install in this Direction

      Engage the claws to install the No. 1 integration relay as shown in the illustration.

  2. INSTALL NO. 1 RELAY BLOCK COVER

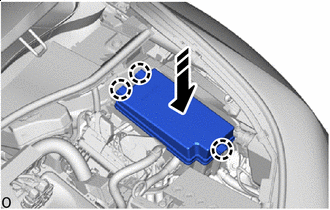

    1. A001O3TC01
      B0048R7 Install in this Direction

      Engage the claws to install the No. 1 relay block cover as shown in the illustration.

  3. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

    Note

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Click here
