MAIN BODY ECU(for LHD) COMPONENTS
Info Added 2017-10-06
ILLUSTRATION

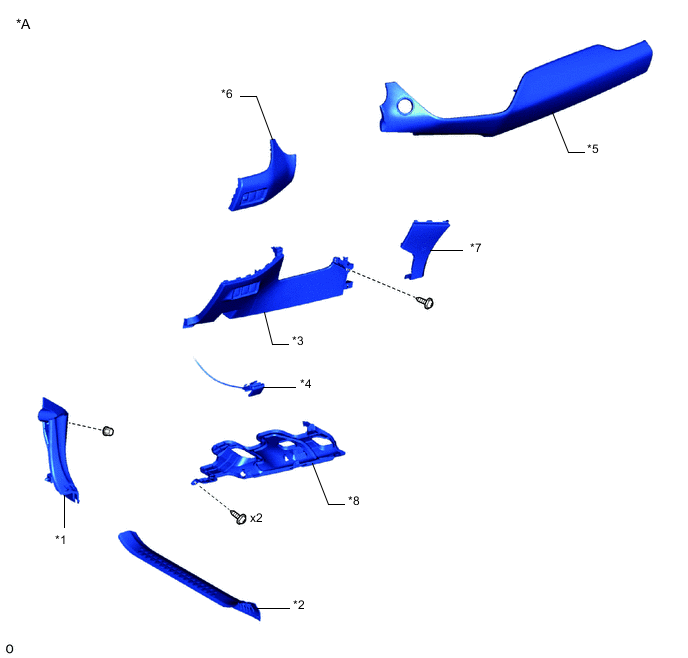

| *A | w/o Driver Side Knee Airbag | - | - |
| *1 | COWL SIDE TRIM BOARD LH | *2 | FRONT DOOR SCUFF PLATE LH |
| *3 | FUSE BOX OPENING COVER | *4 | HOOD LOCK CONTROL LEVER SUB-ASSEMBLY |
| *5 | INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY | *6 | INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY |
| *7 | INSTRUMENT PANEL LOWER CENTER FINISH PANEL | *8 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY |
ILLUSTRATION

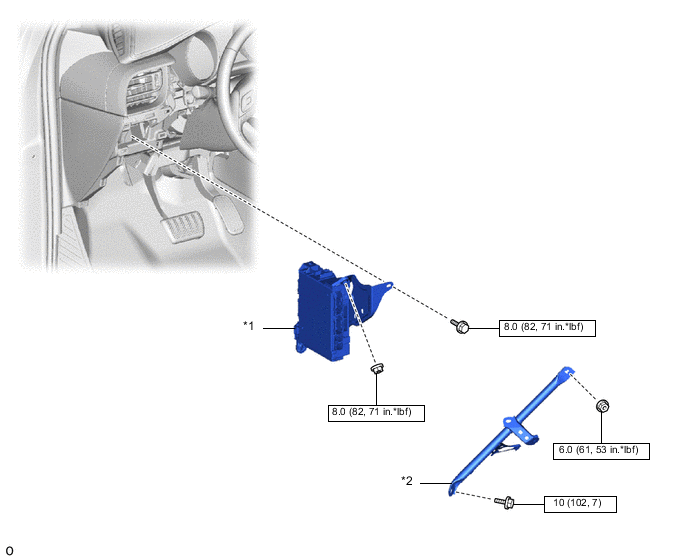

| *1 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY WITH MAIN BODY ECU | *2 | NO. 3 INSTRUMENT PANEL TO COWL BRACE SUB-ASSEMBLY |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION

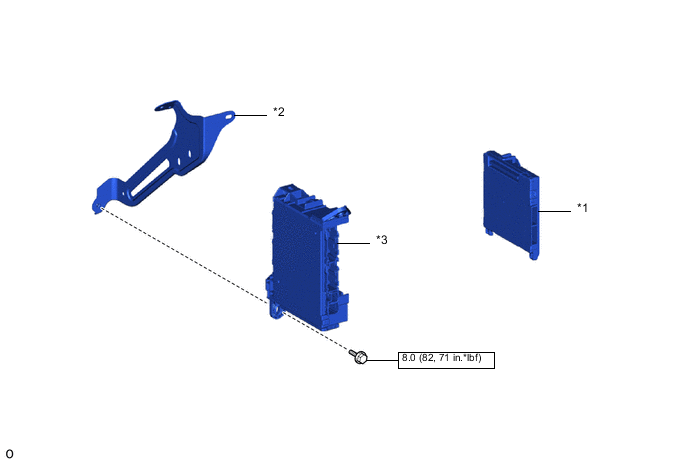

| *1 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *2 | WIRING HARNESS CLAMP BRACKET |
| *3 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
