CHARGING SYSTEM, Diagnostic DTC:P058A01

DTC Code DTC Name
P058A01 Auxiliary Battery Monitor Module Range/Performance

DESCRIPTION

The battery state sensor assembly detects the auxiliary voltage, current and temperature of the auxiliary battery. The battery state sensor assembly calculates State of Charge (SOC) based on the voltage and current of the auxiliary battery and sends it to the hybrid vehicle control ECU. Based on the signals received, the hybrid vehicle control ECU adjusts the charging voltage of the DC/DC converter.

The battery state sensor assembly calculates the auxiliary battery temperature based on changes in resistance of a built-in thermistor and sends it to the hybrid vehicle control ECU. The hybrid vehicle control ECU reduces the amount of charging current based on this signal in order to protect the auxiliary battery.

DTC No. Detection Item DTC Detection Condition Trouble Area Warning Indicate Memory Note
P058A01 Auxiliary Battery Monitor Module Range/Performance

Any of the following conditions is met with the power switch on (IG). (1 trip detection logic):


  • Current is 999.939 A or more, or -1000 A or less for 3.2 seconds or more.

  • The difference between the maximum and minimum current is 0.0305 A or less for 100 seconds or more.

  • A current detection circuit malfunction signal is received.

  • The auxiliary battery temperature is 105°C (221°F) or more or -40°C (-40°F) or less for 3.2 seconds or more.

  • A temperature detection circuit malfunction signal is received.

  • Voltage is 15.98 V or more, or 6.0 V or less for 3.2 seconds or more.

  • A voltage detection circuit malfunction signal is received.

  • A writing error occurs in the auxiliary battery state sensor internal memory (battery identification data).

  • Battery state sensor assembly

  • Auxiliary battery

  • Wire harness or connector

 Charge warning light does not come on DTC stored SAE Code: P058A
DTC Detection Conditions
Vehicle Condition
Pattern 1 Pattern 2 Pattern 3 Pattern 4 Pattern 5 Pattern 6
Diagnosis Condition Power switch on (IG) ○ ○ ○ ○ ○ ○
Malfunction Status Current value is 999.939 A or higher ○ - - - - -
Current value is -1000 A or less - ○ - - - -
Difference between maximum and minimum current value is 0.0305 A or less - - ○ - - -
Current detection circuit malfunction condition is received - - - ○ - -
Battery temperature is 105°C or higher - - - - ○ -
Battery temperature is -40°C or lower - - - - - ○
Detection Time 3.2 seconds or more 3.2 seconds or more 100 seconds or more - 3.2 seconds or more 3.2 seconds or more
Number of Trips 1 trip 1 trip 1 trip 1 trip 1 trip 1 trip
DTC Detection Conditions
Vehicle Condition
Pattern 7 Pattern 8 Pattern 9 Pattern 10 Pattern 11
Diagnosis Condition Power switch on (IG) ○ ○ ○ ○ ○
Malfunction Status Temperature detection circuit malfunction signal is received ○ - - - -
Voltage value remains at 15.98 V or higher - ○ - - -
Voltage value remains at 6.0 V or less - - ○ - -
Voltage detection circuit malfunction signal is received - - - ○ -
Battery state sensor assembly internal memory write malfunction (battery identification information) occurs - - - - ○
Detection Time - 3.2 seconds or more 3.2 seconds or more - -
Number of Trips 1 trip 1 trip 1 trip 1 trip 1 trip

Tech Tips

DTC will be output when conditions for either of the patterns in the table above are met.

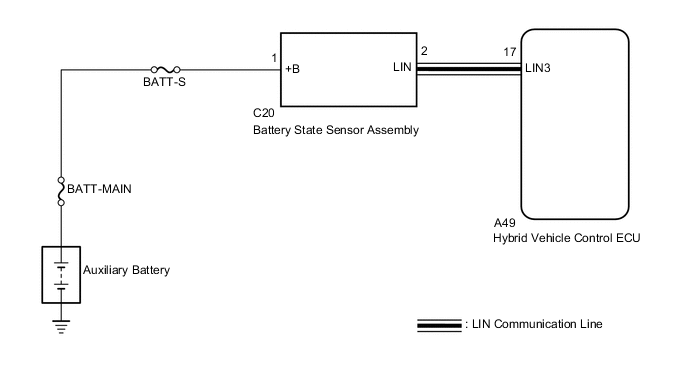

WIRING DIAGRAM

A001R5YE01

CAUTION / NOTICE / HINT

Note


  • Inspect the fuses for circuits related to this system before performing the following procedure.

  • When P162B87 (Lost Communication with Battery Monitor Module Missing Message) is output at the same time, perform troubleshooting for P162B87 (Lost Communication with Battery Monitor Module Missing Message) first.

PROCEDURE


  1. CHECK BATTERY STATE SENSOR ASSEMBLY INSTALLATION CONDITION


    1. Check installation condition of the battery state sensor assembly.

      Result
      Proceed to
      OK
      NG

    NG

    INSTALL THE BATTERY STATE SENSOR ASSEMBLY CORRECTLY Click here

    OK

  2. CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)


    1. Check that the battery state sensor assembly connector is securely connected.

      OK
      The connector is securely connected.

    2. Disconnect the battery state sensor assembly connector.

    3. Check the connector case and terminals for deformation or corrosion.

      OK
      No deformation or corrosion.
    4. A001R0WC80
      *a

      Front view of wire harness connector

      (to Battery State Sensor Assembly)

      Measure the voltage according to the value(s) in the table below.

      Standard Voltage
      Tester Connection Switch Condition Specified Condition
      C20-1 (+B) - Body ground Power switch off 11 to 14 V
      Result
      Proceed to
      OK
      NG

    OK

    REPLACE BATTERY STATE SENSOR ASSEMBLY Click here

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
