| DTC Code | DTC Name |
|---|---|
| P162B87 | Lost Communication with Battery Monitor Module Missing Message |
DESCRIPTION
The hybrid vehicle control ECU communicates with the battery state sensor assembly via LIN communication. If a LIN communication error is detected, the hybrid vehicle control ECU stores this DTC.
| DTC No. | Detection Item | DTC Detection Condition | Trouble Area | Warning Indicate | Memory | Note |
|---|---|---|---|---|---|---|
| P162B87 | Lost Communication with Battery Monitor Module Missing Message | Battery state sensor assembly or hybrid vehicle control ECU communication stops for approximately 17 minutes or more with the power switch on (IG) (1 trip detection logic) |
|
Charge warning light does not come on | DTC stored | SAE Code: P162B |

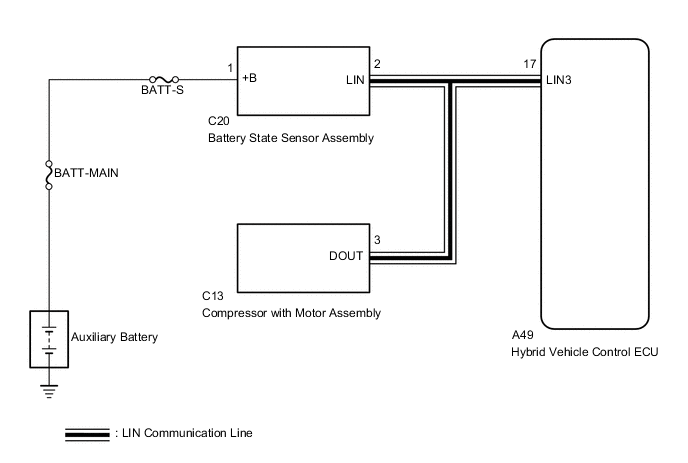

WIRING DIAGRAM
CAUTION / NOTICE / HINT
Note
Inspect the fuses for circuits related to this system before performing the following procedure.
Before replacing the hybrid vehicle control ECU, refer to Service Bulletin.
PROCEDURE
CHECK BATTERY STATE SENSOR ASSEMBLY INSTALLATION CONDITION
Check installation condition of the battery state sensor assembly.
| Result | |||
|---|---|---|---|
|
| NG |
|
INSTALL THE BATTERY STATE SENSOR ASSEMBLY CORRECTLY Click here |
| OK |
|
CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)
Check that the battery state sensor assembly connector is securely connected.
| OK |
|---|
| The connector is securely connected. |
Disconnect the C20 battery state sensor assembly connector.
Check the connector case and terminals for deformation or corrosion.
| OK |
|---|
| No deformation or corrosion. |

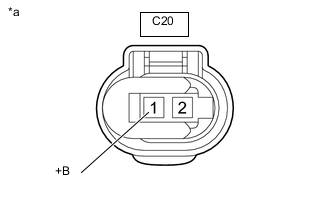

| *a | Front view of wire harness connector (to Battery State Sensor Assembly) |
Measure the voltage according to the value(s) in the table below.
| Standard Voltage | ||||||
|---|---|---|---|---|---|---|
|
| Result | |||
|---|---|---|---|
|
| NG |
|
REPAIR OR REPLACE HARNESS OR CONNECTOR |
| OK |
|
CHECK HARNESS AND CONNECTOR (HYBRID VEHICLE CONTROL ECU - BATTERY STATE SENSOR ASSEMBLY)
Disconnect the A49 hybrid vehicle control ECU connector.
Disconnect the C20 battery state sensor assembly connector.
Disconnect the C13 compressor with motor assembly connector.
Measure the resistance according to the value(s) in the table below.
| Standard Resistance (Check for Open) | ||||||
|---|---|---|---|---|---|---|
|
| Standard Resistance (Check for Short) | ||||||
|---|---|---|---|---|---|---|
|
| Result | |||
|---|---|---|---|
|
| NG |
|
REPAIR OR REPLACE HARNESS OR CONNECTOR |
| OK |
|
CLEAR DTCS
Connect the GTS to the DLC3.
Turn the power switch on (IG).
Turn the GTS on.
Enter the following menus: Powertrain / Hybrid Control / Trouble Codes.
Check for DTCs, and note down any DTCs that are output.
Enter the following menus: Powertrain / Hybrid Control / Trouble Codes.
Clear the DTCs.
| Result | ||
|---|---|---|
|
| NEXT |
|
CLEAR DTCS (AIR CONDITIONING SYSTEM)
Turn the power switch on (IG).
Turn the GTS on.
Enter the following menus: Body Electrical / Air Conditioner / Trouble Codes.
Check for DTCs, and note down any DTCs that are output.
Enter the following menus: Body Electrical / Air Conditioner / Trouble Codes.
Clear the DTCs.
| Result | ||
|---|---|---|
|
| NEXT |
|
CHECK FOR DTCS
Connect the GTS to the DLC3.
Turn the power switch on (READY) and wait for 17 minutes or more.
Turn the GTS on.
Enter the following menus: Powertrain / Hybrid Control / Trouble Codes.
Check for DTCs.
| Result | ||||||
|---|---|---|---|---|---|---|
|
| B |
|
CHECK FOR INTERMITTENT PROBLEMS Click here |
| A |
|
CHECK FOR DTCS (AIR CONDITIONING SYSTEM)
Enter the following menus: Body Electrical / Air Conditioner / Trouble Codes.
Check for DTCs when the following conditions are met.
| Result | ||||||
|---|---|---|---|---|---|---|
|
| A |
|
REPLACE HYBRID VEHICLE CONTROL ECU Click here |
| B |
|
REPLACE BATTERY STATE SENSOR ASSEMBLY Click here |
