ELECTRIC PARKING BRAKE ACTUATOR REMOVAL

Info Added 2017-10-06

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedure for the RH side and LH side.

  • The following procedure is for the LH side.

PROCEDURE


  1. PRECAUTION

    Click here

  2. RELEASE PARKING BRAKE


    1. Move the shift lever to P.

    2. Turn the power switch on (IG).

    3. Operate the electric parking brake switch assembly to release the parking brake.

      Tech Tips

      If the parking brake cannot be released:

      Click here

    4. Turn the engine switch off.

  3. REMOVE REAR WHEEL

    Click here

  4. DISCONNECT NO. 2 PARKING BRAKE WIRE ASSEMBLY


    1. B0048HN

      Disconnect the No. 2 parking brake wire assembly connector from the parking brake actuator assembly.

      Note


      • Remove any dirt or foreign matter on and around the No. 2 parking brake wire assembly connector before performing this work.

      • Do not allow water, oil or dirt to enter the No. 2 parking brake wire assembly connector.

  5. REMOVE PARKING BRAKE ACTUATOR ASSEMBLY

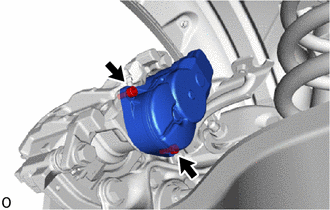

    1. A001Q95

      Using a 5 mm hexagon socket wrench, remove the 2 bolts and parking brake actuator assembly from the rear disc brake cylinder assembly.

      Note


      • Check that there are no brake fluid leaks from the back of the rear disc brake cylinder assembly.

      • If there are any brake fluid leaks, replace the rear disc brake cylinder assembly.

    2. Remove the O-ring from the rear disc brake cylinder assembly.
