ELECTRIC PARKING BRAKE SYSTEM PARTS LOCATION

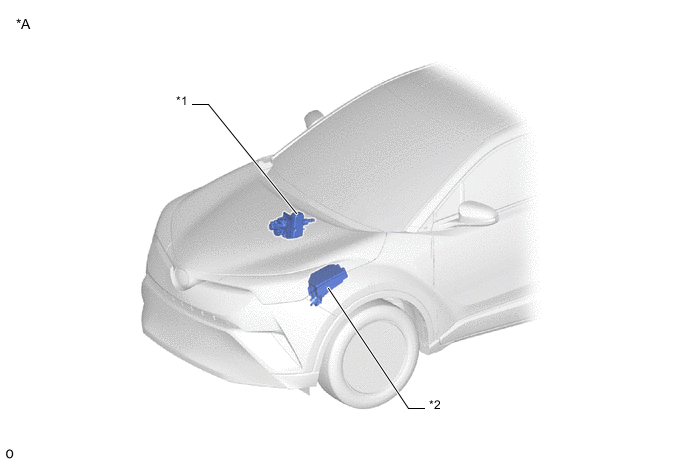

ILLUSTRATION
| *A | for LHD | - | - |
| *1 | SKID CONTROL ECU ASSEMBLY (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY) | *2 | NO. 1 ENGINE ROOM RELAY BLOCK - ABS NO. 2 FUSE - ECU-IG1 NO. 5 FUSE |

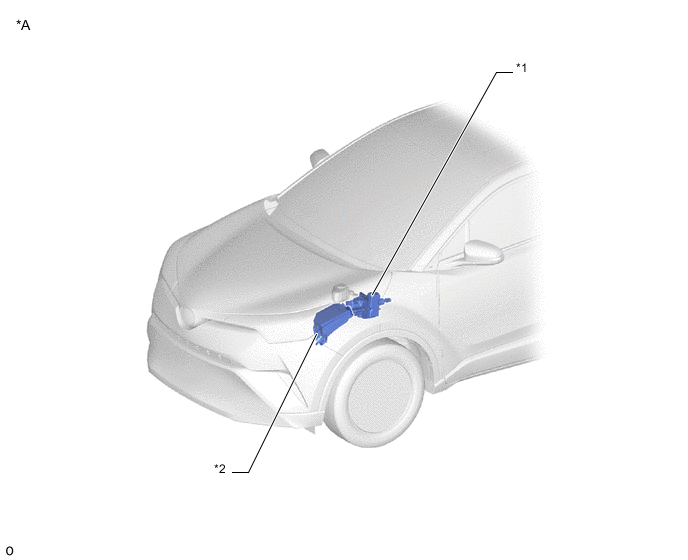

ILLUSTRATION
| *A | for RHD | - | - |
| *1 | SKID CONTROL ECU ASSEMBLY (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY) | *2 | NO. 1 ENGINE ROOM RELAY BLOCK - ABS NO. 2 FUSE - ECU-IG1 NO. 5 FUSE |

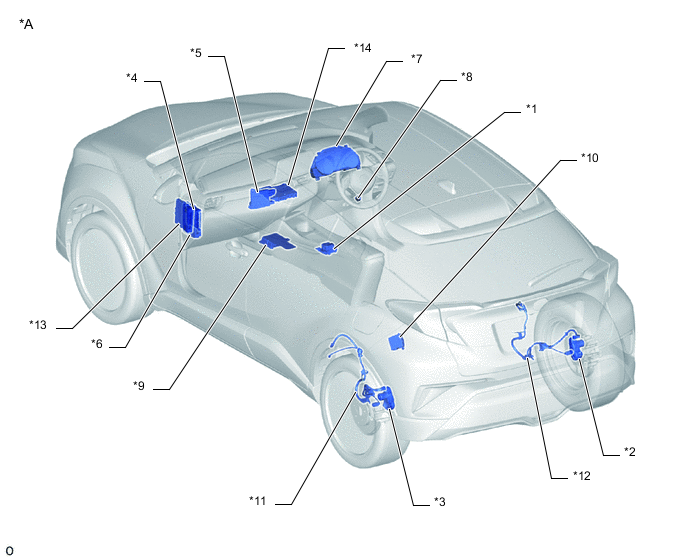

ILLUSTRATION
| *A | for LHD | - | - |
| *1 | ELECTRIC PARKING BRAKE SWITCH (ELECTRIC PARKING BRAKE SWITCH ASSEMBLY) | *2 | PARKING BRAKE ACTUATOR ASSEMBLY RH |
| *3 | PARKING BRAKE ACTUATOR ASSEMBLY LH | *4 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *5 | AIR CONDITIONING AMPLIFIER ASSEMBLY | *6 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-B NO. 2 FUSE |
| *7 | COMBINATION METER ASSEMBLY | *8 | DLC3 |
| *9 | DECELERATION SENSOR (AIRBAG SENSOR ASSEMBLY) | *10 | PARKING BRAKE ECU ASSEMBLY |
| *11 | NO. 2 PARKING BRAKE WIRE ASSEMBLY | *12 | NO. 1 PARKING BRAKE WIRE ASSEMBLY |
| *13 | HYBRID VEHICLE CONTROL ECU | *14 | RADIO RECEIVER ASSEMBLY |

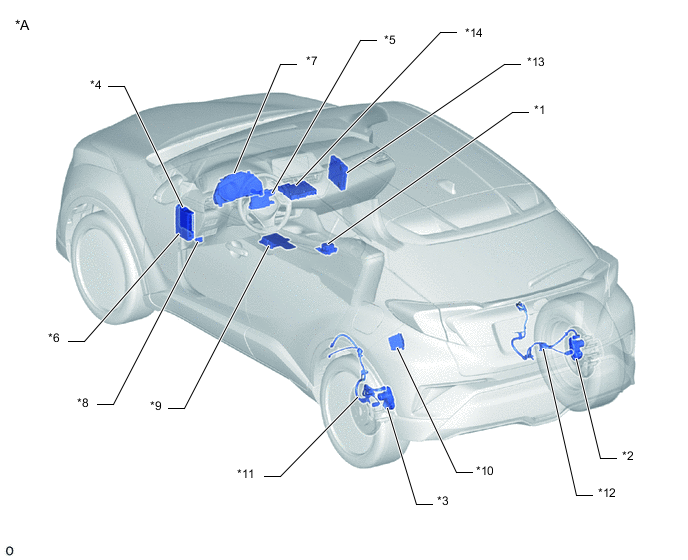

ILLUSTRATION
| *A | for RHD | - | - |
| *1 | ELECTRIC PARKING BRAKE SWITCH (ELECTRIC PARKING BRAKE SWITCH ASSEMBLY) | *2 | PARKING BRAKE ACTUATOR ASSEMBLY RH |
| *3 | PARKING BRAKE ACTUATOR ASSEMBLY LH | *4 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *5 | AIR CONDITIONING AMPLIFIER ASSEMBLY | *6 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-B NO. 2 FUSE |
| *7 | COMBINATION METER ASSEMBLY | *8 | DLC3 |
| *9 | DECELERATION SENSOR (AIRBAG SENSOR ASSEMBLY) | *10 | PARKING BRAKE ECU ASSEMBLY |
| *11 | NO. 2 PARKING BRAKE WIRE ASSEMBLY | *12 | NO. 1 PARKING BRAKE WIRE ASSEMBLY |
| *13 | HYBRID VEHICLE CONTROL ECU | *14 | RADIO RECEIVER ASSEMBLY |
