FRONT BRAKE COMPONENTS
Info Added 2017-10-06

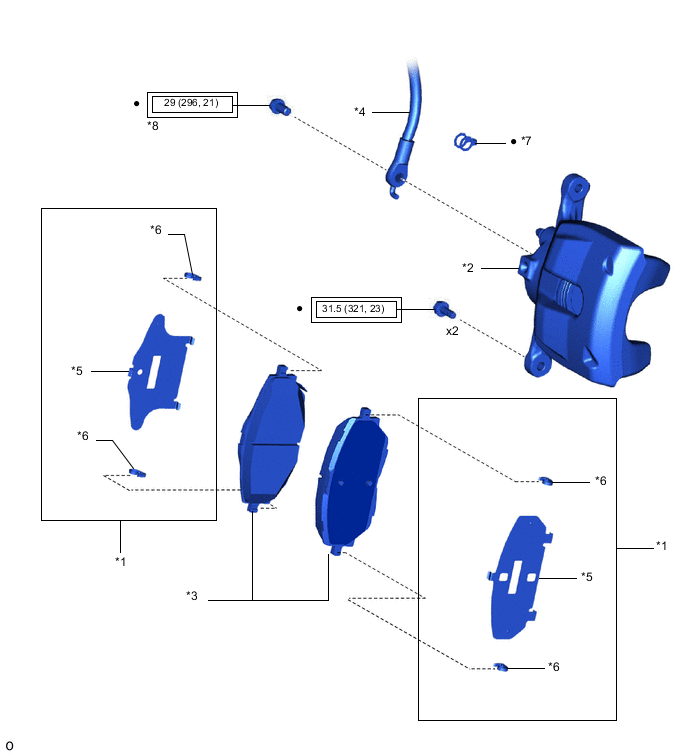

ILLUSTRATION
| *1 | FRONT DISC BRAKE ANTI-SQUEAL SHIM KIT | *2 | FRONT DISC BRAKE CYLINDER ASSEMBLY |
| *3 | FRONT DISC BRAKE PAD | *4 | FRONT FLEXIBLE HOSE |
| *5 | FRONT DISC BRAKE ANTI-SQUEAL SHIM | *6 | FRONT BRAKE PAD RADIAL SPRING |
| *7 | GASKET | *8 | UNION BOLT |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | ● | Non-reusable part |

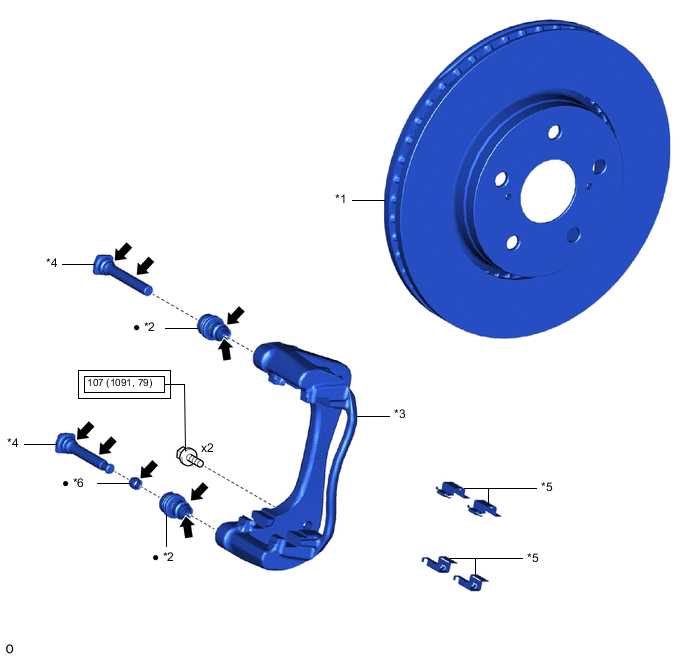

ILLUSTRATION
| *1 | FRONT DISC | *2 | FRONT DISC BRAKE BUSHING DUST BOOT |
| *3 | FRONT DISC BRAKE CYLINDER MOUNTING | *4 | FRONT DISC BRAKE CYLINDER SLIDE PIN |
| *5 | FRONT DISC BRAKE PAD SUPPORT PLATE | *6 | FRONT DISC BRAKE CYLINDER SLIDE BUSHING |
| |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | ● | Non-reusable part |
 |
Lithium soap base glycol grease | - | - |

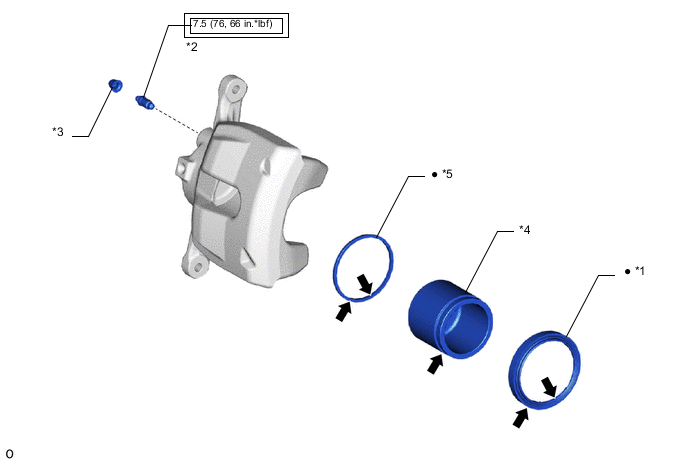

ILLUSTRATION
| *1 | CYLINDER BOOT | *2 | FRONT DISC BRAKE BLEEDER PLUG |
| *3 | FRONT DISC BRAKE BLEEDER PLUG CAP | *4 | FRONT DISC BRAKE PISTON |
| *5 | PISTON SEAL | - | - |
| |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | ● | Non-reusable part |
| |
Lithium soap base glycol grease | - | - |
