REAR AXLE CARRIER COMPONENTS
Info Added 2017-10-06

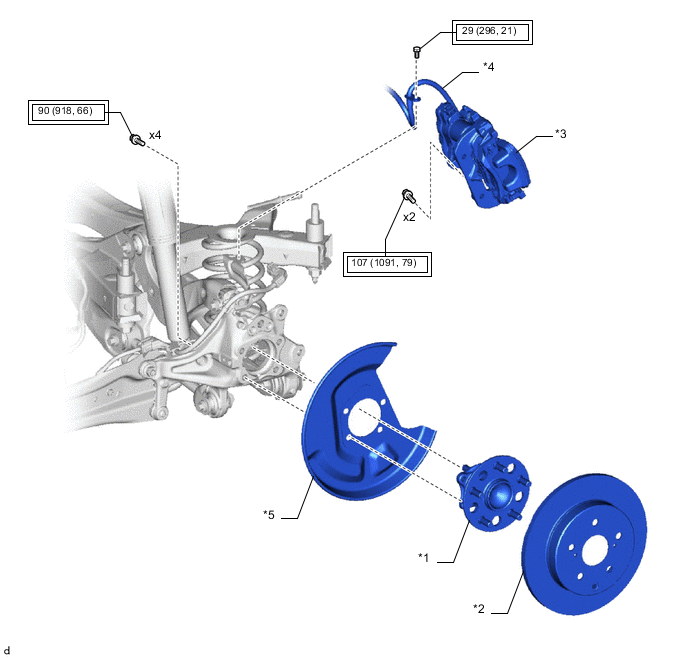

ILLUSTRATION
| *1 | REAR AXLE HUB AND BEARING ASSEMBLY | *2 | REAR DISC |
| *3 | REAR DISC BRAKE CALIPER ASSEMBLY | *4 | REAR FLEXIBLE HOSE |
| *5 | REAR DISC BRAKE DUST COVER SUB-ASSEMBLY | - | - |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | - | - |

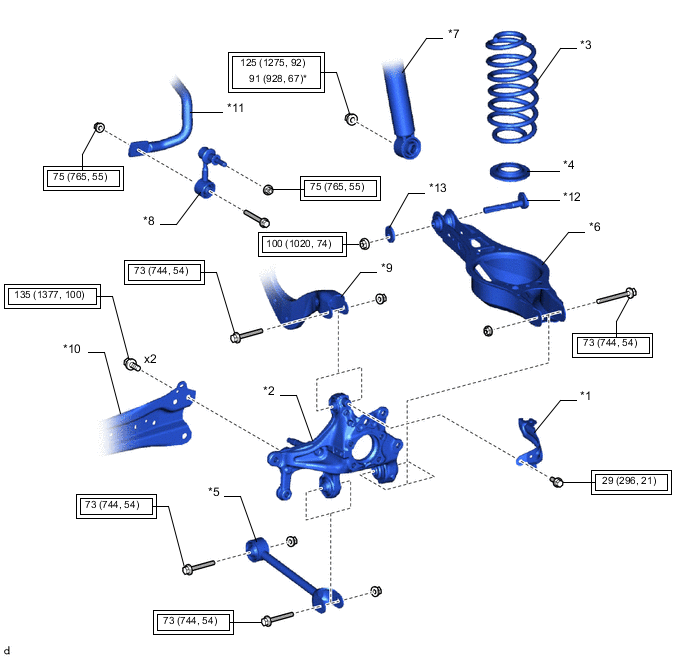

ILLUSTRATION
| *1 | FLEXIBLE HOSE BRACKET | *2 | REAR AXLE CARRIER SUB-ASSEMBLY |
| *3 | REAR COIL SPRING | *4 | REAR LOWER COIL SPRING INSULATOR |
| *5 | REAR NO. 1 SUSPENSION ARM ASSEMBLY | *6 | REAR NO. 2 SUSPENSION ARM ASSEMBLY |
| *7 | REAR SHOCK ABSORBER ASSEMBLY | *8 | REAR STABILIZER LINK ASSEMBLY |
| *9 | REAR UPPER CONTROL ARM ASSEMBLY | *10 | REAR TRAILING ARM ASSEMBLY |
| *11 | REAR STABILIZER BAR | *12 | REAR SUSPENSION TOE ADJUST CAM SUB-ASSEMBLY |
| *13 | NO. 2 CAMBER ADJUST CAM | - | - |
| |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | * | For use with a ball joint lock nut wrench |
