FRONT DRIVE SHAFT ASSEMBLY INSPECTION

PROCEDURE


  1. INSPECT FRONT DRIVE SHAFT ASSEMBLY

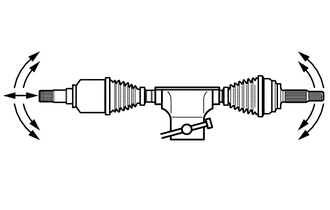

    1. A001OGU

      Check that there is no excessive play in the radial direction of the outboard joint.

    2. Check that the inboard joint slides smoothly in the thrust direction.

    3. Check that there is no excessive play in the radial direction of the inboard joint.

    4. Check the boots for damage.

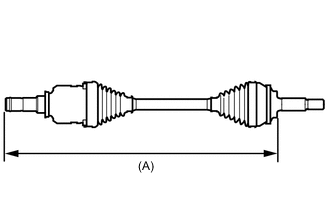

    5. A001RUCN06

      Check whether each drive shaft dimension (A) is within specification.

      Dimension (A)
      LH Side RH Side
      590.5 mm (1.94 ft.) 887.2 mm (2.91 ft.)

      Note

      Keep the drive shaft assembly level during inspection.
