SHIFT LEVER POSITION SENSOR COMPONENTS
Info Added 2017-10-06

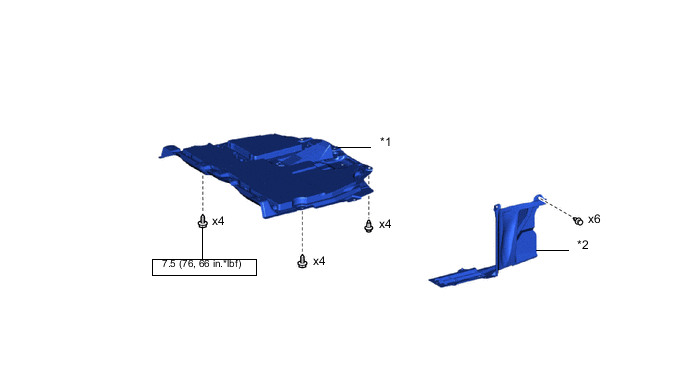

ILLUSTRATION
| *1 | NO. 1 ENGINE UNDER COVER | *2 | REAR ENGINE UNDER COVER LH |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

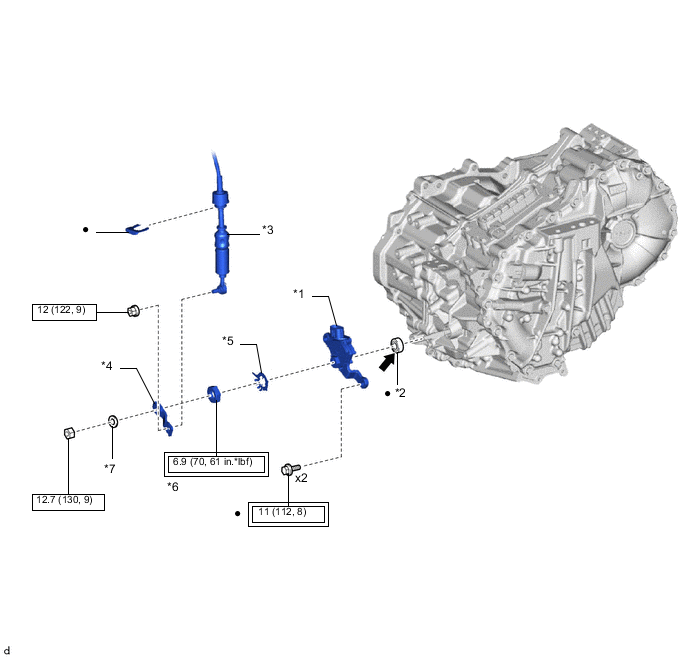

ILLUSTRATION
| *1 | SHIFT LEVER POSITION SENSOR | *2 | SHIFT LEVER POSITION SENSOR SEAL |
| *3 | TRANSMISSION CONTROL CABLE ASSEMBLY | *4 | CONTROL SHAFT LEVER |
| *5 | LOCK PLATE | *6 | LOCK NUT |
| *7 | WASHER | - | - |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | |
N*m (kgf*cm, ft.*lbf): Specified torque |
| ● | Non-reusable part |  |
MP grease |
