SHIFT LEVER COMPONENTS
Info Added 2017-10-06

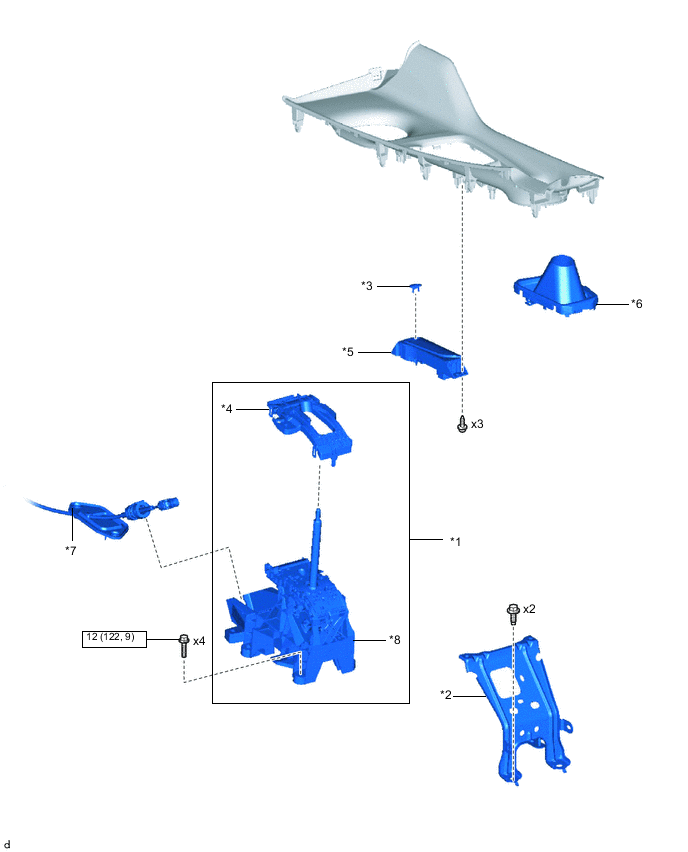

ILLUSTRATION
| *1 | FLOOR SHIFT SHIFT LEVER ASSEMBLY | *2 | NO. 1 CONSOLE BOX MOUNTING BRACKET |
| *3 | SHIFT LEVER CAP | *4 | SHIFT LEVER HOUSING BRACKET SUB-ASSEMBLY |
| *5 | SHIFT POSITION INDICATOR | *6 | SHIFTING HOLE COVER SUB-ASSEMBLY |
| *7 | TRANSMISSION CONTROL CABLE ASSEMBLY | *8 | SHIFT LOCK CONTROL UNIT ASSEMBLY |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
