HYBRID VEHICLE TRANSAXLE COMPONENTS
Info Added 2017-10-06

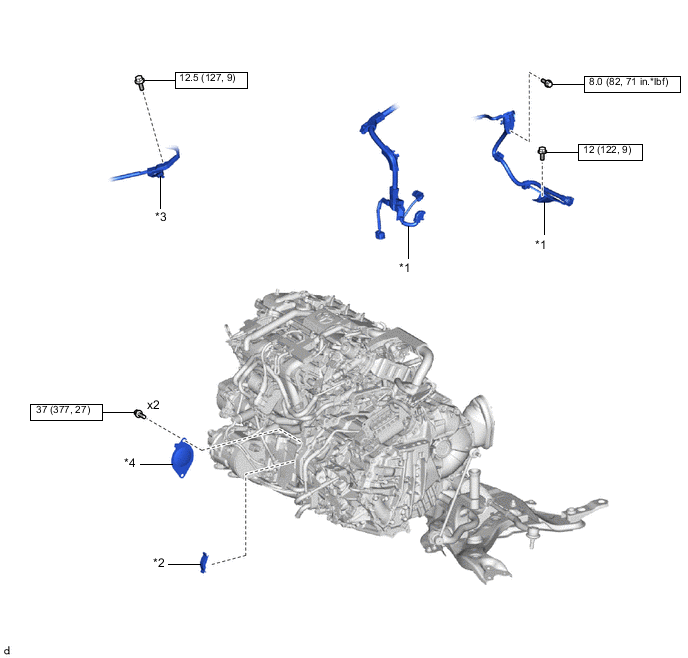

ILLUSTRATION
| *1 | ENGINE WIRE | *2 | FLYWHEEL HOUSING SIDE COVER |
| *3 | HV AIR CONDITIONING WIRE | *4 | STARTER HOLE INSULATOR |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

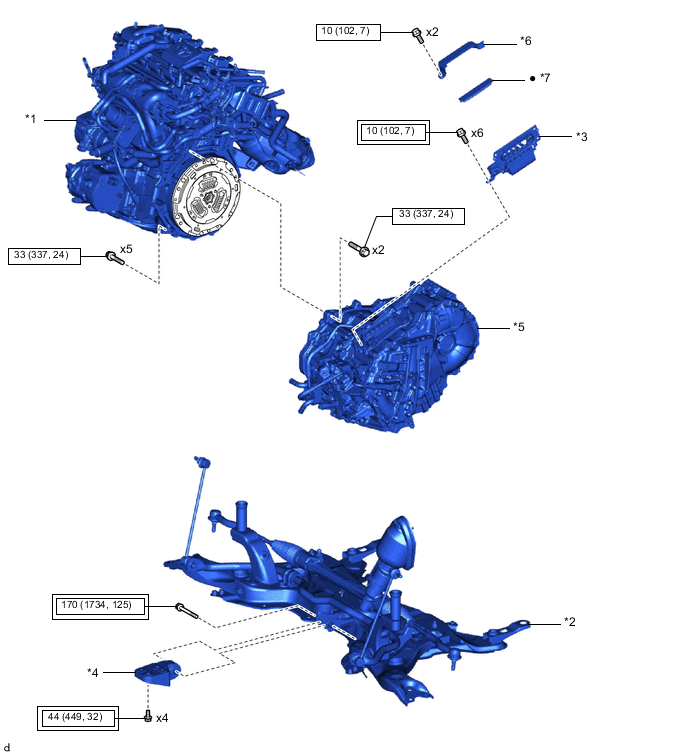

ILLUSTRATION
| *1 | ENGINE ASSEMBLY | *2 | FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY |
| *3 | MOTOR CABLE | *4 | NO. 2 ENGINE MOVING CONTROL ROD |
| *5 | HYBRID VEHICLE TRANSAXLE ASSEMBLY | *6 | CONNECTOR COVER |
| *7 | TERMINAL CAP | - | - |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | |
N*m (kgf*cm, ft.*lbf): Specified torque |
| ● | Non-reusable part | - | - |

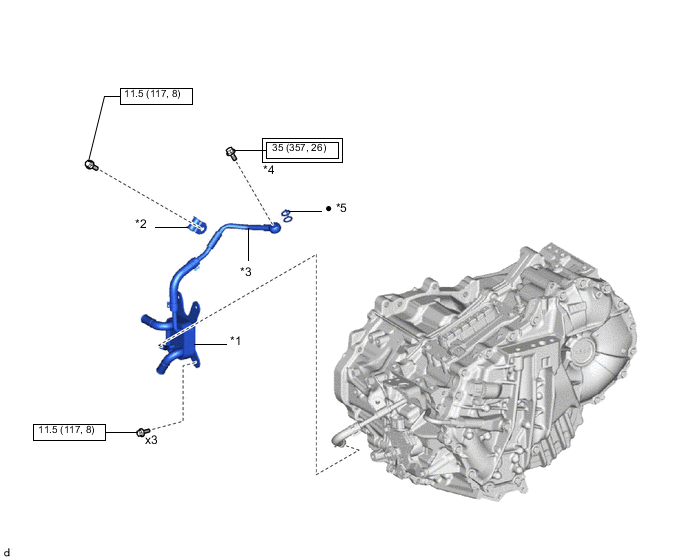

ILLUSTRATION
| *1 | MOTOR COOLING COOLER | *2 | NO. 1 OIL COOLER TUBE CLAMP |
| *3 | NO. 2 MOTOR COOLING PIPE | *4 | UNION BOLT |
| *5 | GASKET | - | - |
| |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | |
N*m (kgf*cm, ft.*lbf): Specified torque |
| ● | Non-reusable part | - | - |

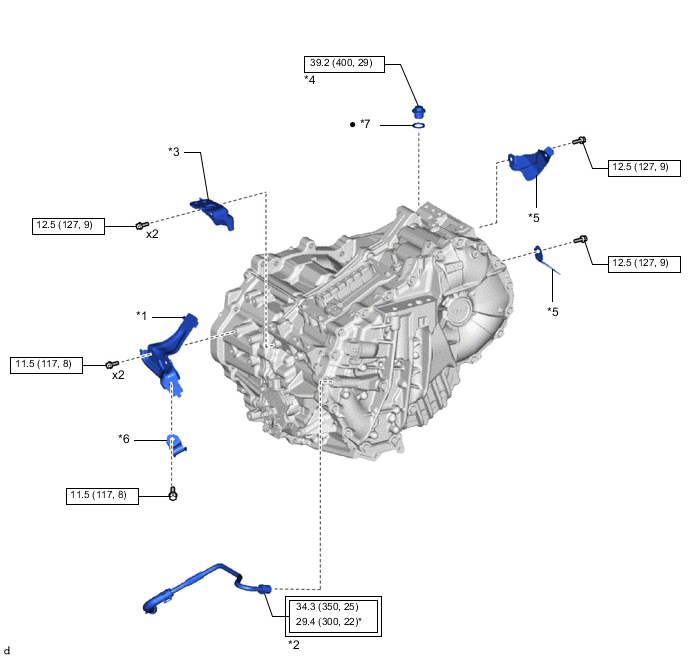

ILLUSTRATION
| *1 | HOSE BRACKET | *2 | NO. 1 MOTOR COOLING PIPE |
| *3 | NO. 1 TRANSMISSION CONTROL CABLE BRACKET | *4 | TRANSAXLE HOUSING PLUG |
| *5 | WIRE HARNESS CLAMP BRACKET | *6 | NO. 1 OIL COOLER TUBE CLAMP |
| *7 | GASKET | - | - |
| |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | |
N*m (kgf*cm, ft.*lbf): Specified torque |
| * | For use with a union nut wrench | ● | Non-reusable part |
