OIL COOLER COMPONENTS
Info Added 2017-10-06

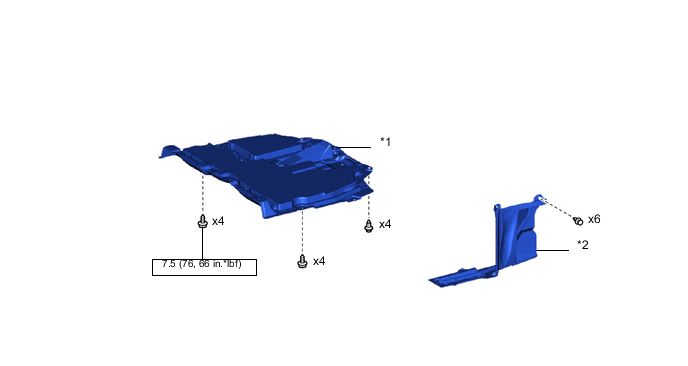

ILLUSTRATION
| *1 | NO. 1 ENGINE UNDER COVER | *2 | REAR ENGINE UNDER COVER LH |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION
| *1 | AIR CLEANER CAP SUB-ASSEMBLY | *2 | AIR CLEANER CASE SUB-ASSEMBLY |
| *3 | AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY | *4 | AIR CLEANER HOSE ASSEMBLY |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

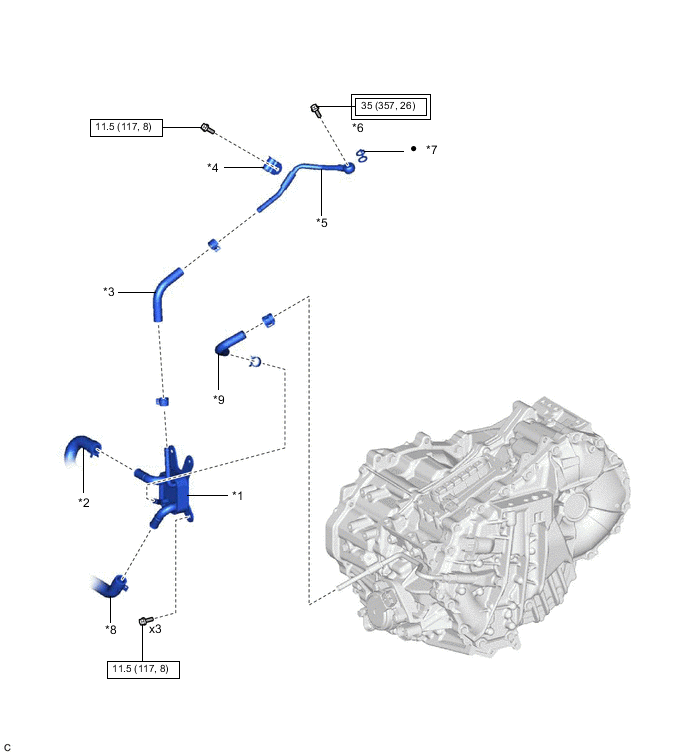

ILLUSTRATION
| *1 | MOTOR COOLING COOLER | *2 | OUTLET NO. 1 HYBRID WATER PUMP HOSE |
| *3 | NO. 2 MOTOR COOLING HOSE | *4 | NO. 1 OIL COOLER TUBE CLAMP |
| *5 | NO. 2 MOTOR COOLING PIPE | *6 | UNION BOLT |
| *7 | GASKET | *8 | INLET HYBRID WATER PUMP HOSE |
| *9 | NO. 1 MOTOR COOLING HOSE | - | - |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | |
N*m (kgf*cm, ft.*lbf): Specified torque |
| ● | Non-reusable part | - | - |
