TRANSMISSION CONTROL CABLE INSTALLATION

Info Added 2017-10-06

PROCEDURE


  1. INSTALL TRANSMISSION CONTROL CABLE ASSEMBLY


    1. A001OFH

      Pass the transmission control cable assembly into the vehicle and install the transmission control cable assembly to the vehicle body with the 2 nuts.

      Torque:
      5.0 N*m  { 51 kgf*cm, 44 in.*lbf }
    2. A001QJR

      Engage the guide to connect the transmission control cable assembly to vehicle body.

    3. Install the nut.

      Torque:
      5.0 N*m  { 51 kgf*cm, 44 in.*lbf }
    4. A001S14

      Install the transmission control cable assembly from the cylinder head cover sub-assembly with the bolt.

      Torque:
      5.0 N*m  { 51 kgf*cm, 44 in.*lbf }

    5. Engage the clamp to connect the transmission control cable assembly.

    6. A001NQUN02

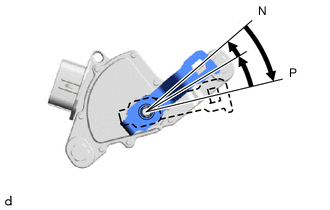

      Turn the control shaft lever clockwise until it stops, and then from that position turn it counterclockwise by 2 notches to set it to the N position.

    7. Connect the transmission control cable assembly to the No. 1 transmission control cable bracket with a new clip.

    8. Connect the transmission control cable assembly to the control shaft lever with the nut.

      Torque:
      12 N*m  { 122 kgf*cm, 9 ft.*lbf }
    9. A001OVZC01
      B0048R7 Install in this Direction

      Connect the transmission control cable assembly to the floor shift shift lever assembly.

      Note

      Make sure that the transmission control cable assembly is securely locked.

    10. A001QBYC01
      B0048R7 Install in this Direction

      Connect the end of the transmission control cable assembly to the floor shift shift lever assembly.

      Note


      • Before connecting the transmission control cable assembly, check that the park/neutral position switch and shift lever are in neutral.

      • Install the end of the transmission control cable assembly so that the lock piece faces the driver side.

      • Install the end of the transmission control cable assembly all the way to the base of the pin.

  2. ADJUST SHIFT LEVER POSITION

    Click here

  3. INSTALL FRONT NO. 1 FLOOR HEAT INSULATOR


    1. Install the front No. 1 floor heat insulator to the vehicle body with the 3 nuts.

      Torque:
      5.0 N*m  { 51 kgf*cm, 44 in.*lbf }

  4. INSTALL FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)

    Click here

  5. INSTALL FRONT FLOOR CENTER BRACE

    Click here

  6. INSTALL REAR CONSOLE BOX ASSEMBLY

    Click here

  7. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY

    Click here

  8. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Click here

    Note

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Click here

  9. INSPECT SHIFT LEVER POSITION

    Click here

  10. INSPECT FOR EXHAUST GAS LEAK

    Click here

    Tech Tips

    Perform Inspection After Repair after repairing an exhaust gas leak.

    Click here

  11. INSTALL REAR ENGINE UNDER COVER LH

    Click here

  12. INSTALL NO. 1 ENGINE UNDER COVER

    Click here
