INTAKE MANIFOLD COMPONENTS
Info Added 2017-10-06

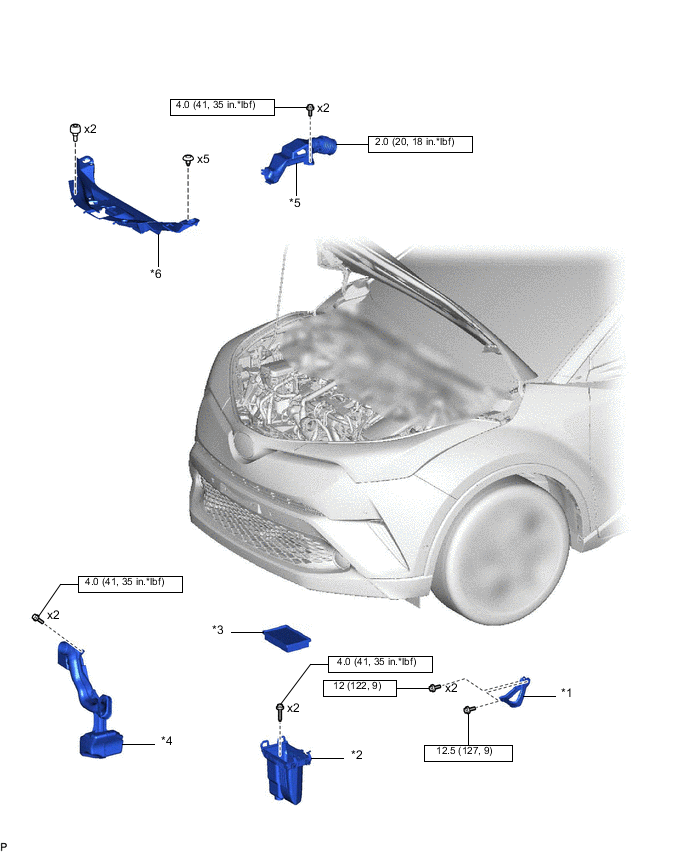

ILLUSTRATION
| *1 | AIR CLEANER BRACKET | *2 | AIR CLEANER CASE SUB-ASSEMBLY |
| *3 | AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY | *4 | NO. 1 AIR CLEANER INLET |
| *5 | NO. 2 AIR CLEANER INLET | *6 | RADIATOR COVER |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

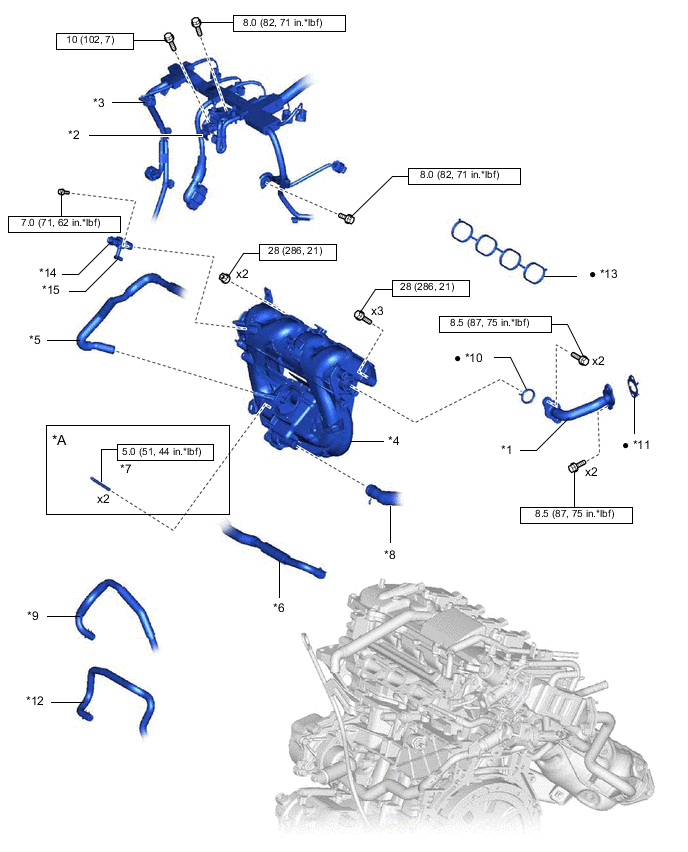

ILLUSTRATION
| *A | w/ Stud Bolt | - | - |
| *1 | EGR PIPE ASSEMBLY | *2 | ENGINE COVER BRACKET |
| *3 | ENGINE WIRE | *4 | INTAKE MANIFOLD |
| *5 | NO. 2 FUEL VAPOR FEED HOSE | *6 | NO. 8 WATER BY-PASS HOSE |
| *7 | STUD BOLT | *8 | VENTILATION HOSE |
| *9 | WATER BY-PASS HOSE | *10 | INLET EGR GASKET |
| *11 | EGR PIPE GASKET | *12 | NO. 2 WATER BY-PASS HOSE |
| *13 | NO. 1 INTAKE MANIFOLD TO HEAD GASKET | *14 | E.F.I. VACUUM SENSOR ASSEMBLY (MANIFOLD ABSOLUTE PRESSURE SENSOR) |
| *15 | VACUUM HOSE | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
