PURGE VALVE COMPONENTS
Info Added 2017-10-06
ILLUSTRATION

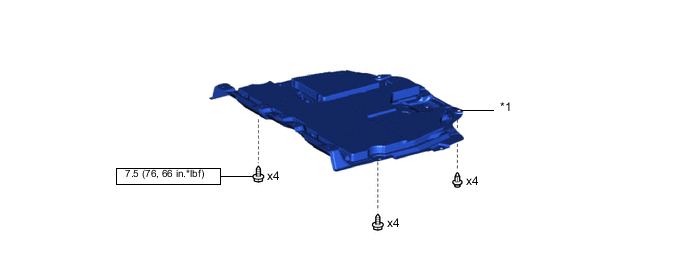

| *1 | NO. 1 ENGINE UNDER COVER | - | - |
ILLUSTRATION

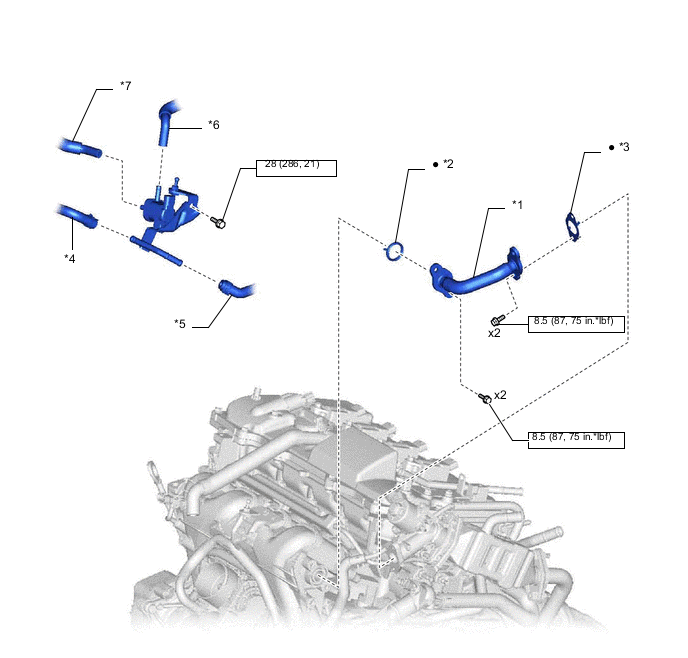

| *1 | EGR PIPE ASSEMBLY | *2 | INLET EGR GASKET |
| *3 | EGR PIPE GASKET | *4 | NO. 8 WATER BY-PASS HOSE |
| *5 | NO. 9 WATER BY-PASS HOSE | *6 | NO. 1 FUEL VAPOR FEED HOSE |
| *7 | NO. 2 FUEL VAPOR FEED HOSE | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
ILLUSTRATION

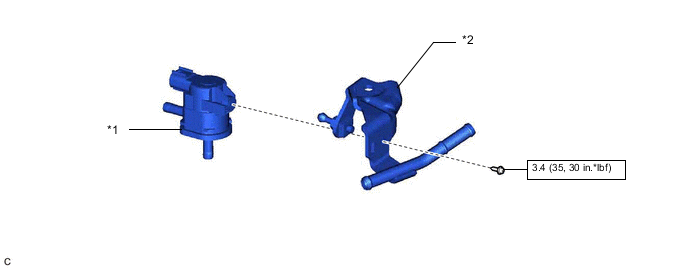

| *1 | PURGE VALVE (PURGE VSV) | *2 | NO. 3 WATER BY-PASS PIPE |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
