2ZR-FXE AUXILIARY BATTERY COMPONENTS
Info Added 2017-10-06

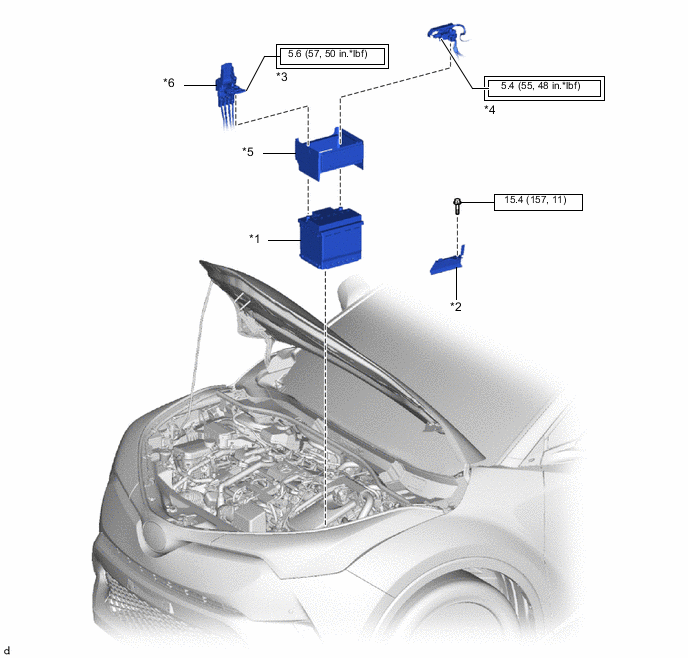

ILLUSTRATION
| *1 | AUXILIARY BATTERY | *2 | NO. 2 BATTERY CLAMP |
| *3 | POSITIVE AUXILIARY BATTERY TERMINAL | *4 | NEGATIVE AUXILIARY BATTERY TERMINAL |
| *5 | BATTERY INSULATOR | *6 | BATTERY TERMINAL CAP |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) |  |
N*m (kgf*cm, ft.*lbf): Specified torque |
