HOW TO USE THIS MANUAL ILLUSTRATION OF WELD POINT SYMBOLS

REMOVAL

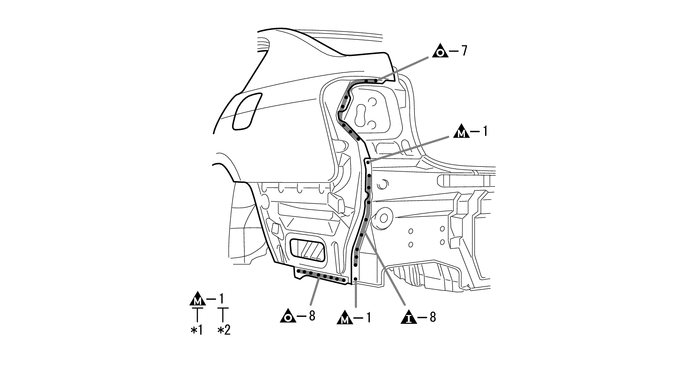

A002KQF
*1 Position of panels that are removed
*2 Weld points
SYMBOLS MEANING ILLUSTRATION

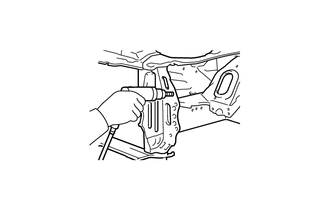

A002KHW Remove Weld Points A002KIU

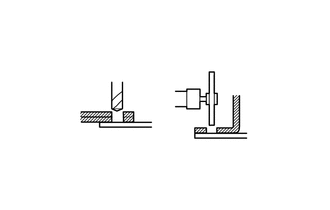

A002KMP Position of Panel Being Replaced is on Outside A002KM2

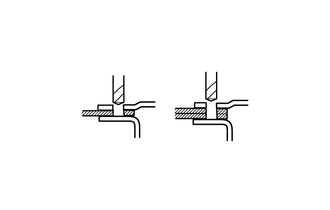

A002KJV Position of Panel Being Replaced is in Center A002KOX

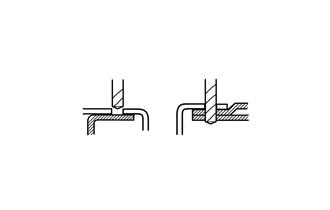

A002KMY Position of Panel Being Replaced is on Inside A002KHY
INSTALLATION
A002KMB
*1 Welding method and panel position
*2 Weld points
SYMBOLS MEANING ILLUSTRATION

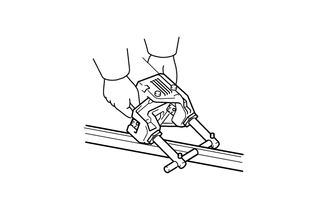

A002KKN Spot Welding A002KON

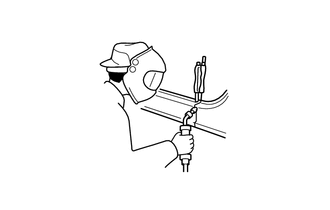

A002KIK Plug Welding A002KQ6

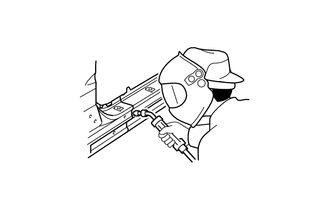

A002KKL Spot MIG Welding A002KL8
