WATER PUMP INSTALLATION

PROCEDURE

  1. INSTALL WATER PUMP ASSEMBLY

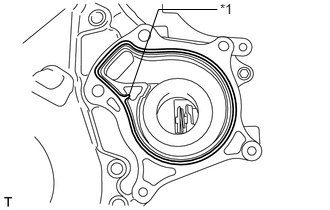

    1. A162996E03

      Align the protrusion of a new gasket with the cutout in the timing chain cover and install the gasket to the groove of the timing chain cover.

      Table 1. Text in Illustration

      *1

      Protrusion
      Tip:

      Be sure to clean the contact surfaces.

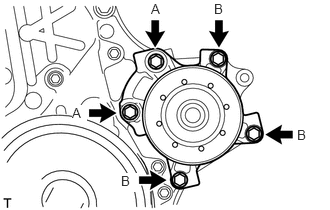

    2. A234266E04

      Install the water pump to the timing chain cover with the 5 bolts.

      for bolt A

      26 N*m

      260 kgf*cm

      19 ft.*lbf

      for bolt B

      21 N*m

      214 kgf*cm

      15 ft.*lbf

      Standard Bolt

      Item

      Length

      Bolt A

      35 mm (1.38 in.)

      Bolt B

      25 mm (0.984 in.)

  2. INSTALL GENERATOR ASSEMBLY

    Click here

  3. INSTALL V-RIBBED BELT

    Click here

  4. ADJUST V-RIBBED BELT

    Click here

  5. INSPECT V-RIBBED BELT

    Click here

  6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Note:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Click here).

  7. ADD ENGINE COOLANT

    Click here

  8. INSPECT FOR COOLANT LEAK

    Click here

  9. INSTALL REAR ENGINE UNDER COVER RH

    Click here

  10. INSTALL NO. 1 ENGINE UNDER COVER

    Click here

  11. INSTALL NO. 2 CYLINDER HEAD COVER

    Click here

  12. INSTALL RADIATOR SUPPORT OPENING COVER

    Click here
