VANE PUMP (for 5L-E) INSTALLATION


  1. INSTALL VANE PUMP ASSEMBLY

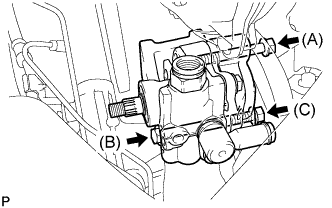

    1. B007TS7E01

      Install the vane pump assembly with the 2 bolts and the nut.

      Torque:
      Bolt (A)
      48 N*m  { 490 kgf*cm, 35 ft.*lbf }
      Nut (C)
      63 N*m  { 642 kgf*cm, 47 ft.*lbf }

      Tech Tips

      Turn nut (C) while holding bolt (B).

  2. INSTALL VANE PUMP PULLEY


    1. B007W3EE01

      Using SST, install the vane pump pulley to the vane pump assembly.

      SST
      09960-10010   ( 09962-01000, 09963-01000 )
      Torque:
      43 N*m  { 439 kgf*cm, 32 ft.*lbf }

  3. CONNECT PRESSURE FEED TUBE ASSEMBLY


    1. Install a new gasket to the pressure feed tube assembly.

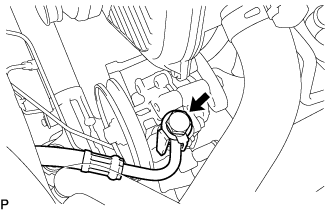

    2. B007R0P

      Connect the pressure feed tube assembly to the vane pump assembly with the union bolt.

      Torque:
      50 N*m  { 510 kgf*cm, 37 ft.*lbf }

      Tech Tips

      Make sure the stopper of the pressure feed tube assembly touches the vane pump assembly.

  4. CONNECT OIL RESERVOIR TO PUMP HOSE NO.1

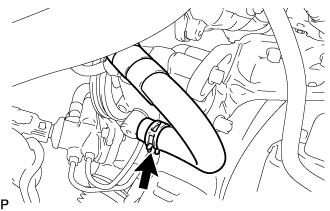

    1. B007PAT

      Connect the oil reservoir to pump hose No.1 to the vane pump assembly with the clip.

  5. INSTALL FAN & GENERATOR V BELT


    1. B007PUUE01

      Install the V belt.

    2. Using a bar, adjust the tension of the V-ribbed belt.

    3. Tighten the bolt A and nut B.

      Torque:
      Bolt (A)
      48 N*m  { 489 kgf*cm, 35 ft.*lbf }
      Nut (B)
      64 N*m  { 635 kgf*cm, 47 ft.*lbf }

    4. Check the tension of the V belt. Click here

  6. ADD POWER STEERING FLUID

  7. BLEED POWER STEERING FLUID

    Click here

  8. CHECK FOR POWER STEERING FLUID LEAKS
