STEERING PAD(for Dual Type) INSTALLATION

PROCEDURE

1. INSTALL STEERING PAD ASSEMBLY

   1. Check that the ignition switch is off.

   2. Check that the cable is disconnected from the negative (-) battery terminal.

      CAUTION:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

   3. Support the steering pad assembly with one hand.

   4.

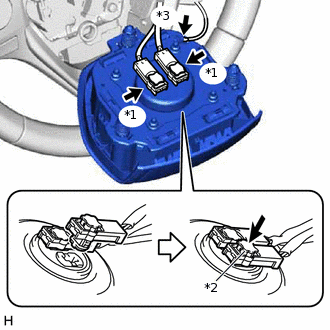

      *1	Airbag Connector
      *2	Connector Lock
      *3	Horn Connector

      Connect the 2 airbag connectors to the steering pad assembly.

      Note:

      When connecting any airbag connector, take care not to damage the airbag wire harness.

   5. Push in the 2 connector locks to install the 2 airbag connectors.

   6. Connect the horn connector to the steering pad assembly.

   7. Attach the 3 claws to install the steering pad assembly.

      Tip:

      Attach the 3 claws by pushing the steering pad assembly.

      Note:

      Make sure that the steering pad assembly is securely installed.

2. INSTALL LOWER NO. 2 STEERING WHEEL COVER

   1. Attach the guide and claw to install the lower No. 2 steering wheel cover.

3. CONNECT CABLE TO AUXILIARY BATTERY NEGATIVE TERMINAL

   Note:

   When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

   Click hereClick hereClick here

4. INSTALL BATTERY SERVICE COVER

   Click here

5. INSTALL DECK BOARD ASSEMBLY

   Click here

6. INSPECT STEERING PAD ASSEMBLY

   1. With the steering pad assembly installed to the vehicle, perform a visual check. If there are any defects as mentioned below, replace the steering pad assembly with a new one:

      Cuts, minute cracks or marked discoloration on the steering pad assembly top surface or in the grooved portion.

   2. Make sure that the horn sounds.

      Tip:

      If the horn does not sound, inspect the horn system.

      Click here

7. PERFORM DIAGNOSTIC SYSTEM CHECK

   Click here

8. CHECK SRS WARNING LIGHT

   Click here
