INVERTER WITH CONVERTER COMPONENTS

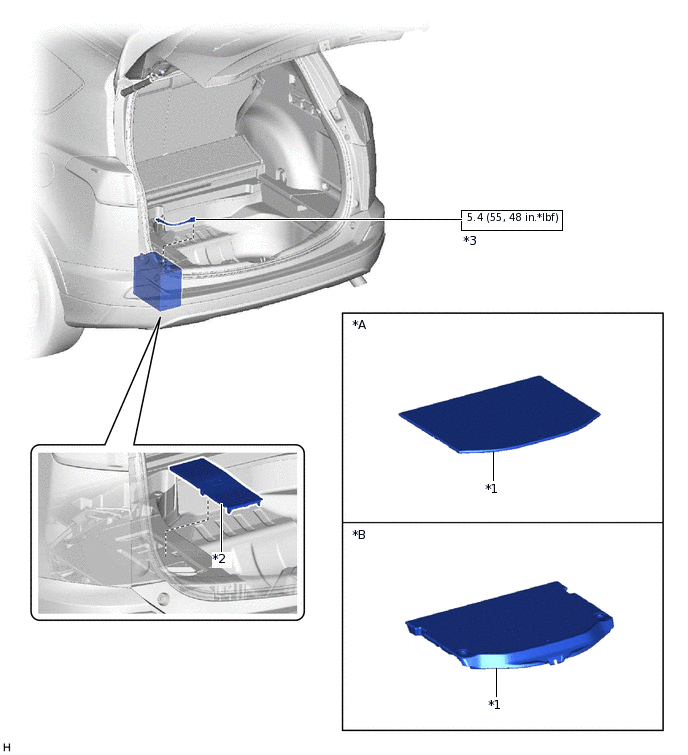

ILLUSTRATION
*A |
w/o Full Size Spare Tire |
*B |
w/ Full Size Spare Tire |
*1 |
DECK BOARD ASSEMBLY |
*2 |
BATTERY SERVICE COVER |
*3 |
NEGATIVE AUXILIARY BATTERY TERMINAL |
- |
- |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |

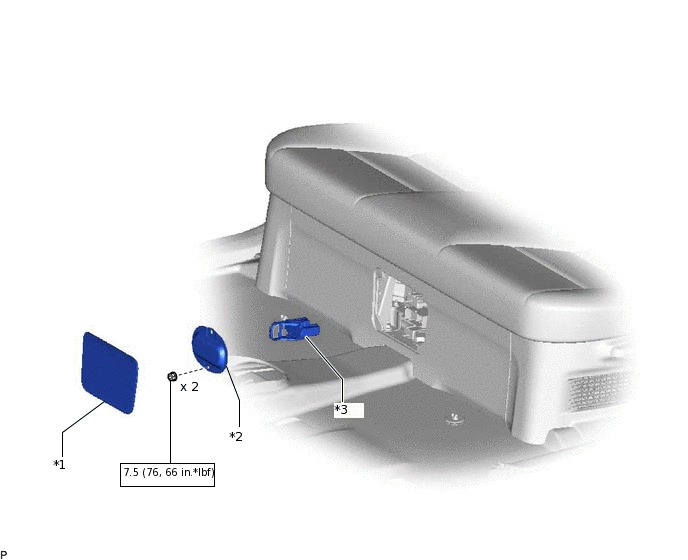

ILLUSTRATION
*1 |
BATTERY SERVICE HOLE COVER |
*2 |
HYBRID BATTERY SERVICE PLUG COVER |
*3 |
SERVICE PLUG GRIP |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |

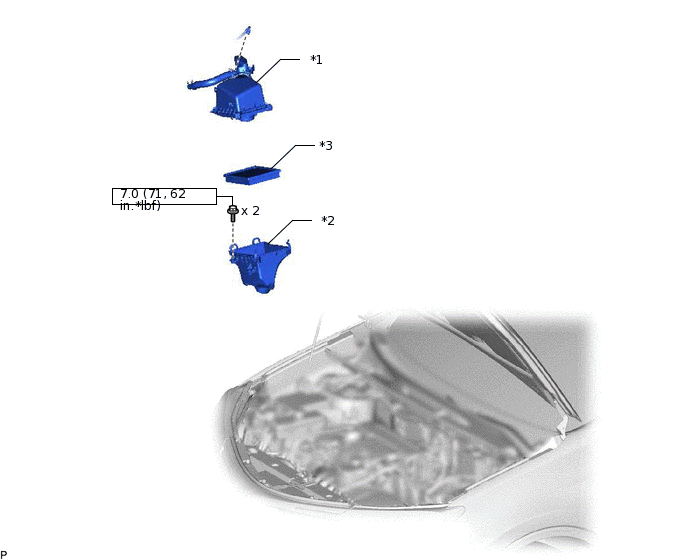

ILLUSTRATION
*1 |
AIR CLEANER CAP SUB-ASSEMBLY |
*2 |
AIR CLEANER CASE SUB-ASSEMBLY |
*3 |
AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |

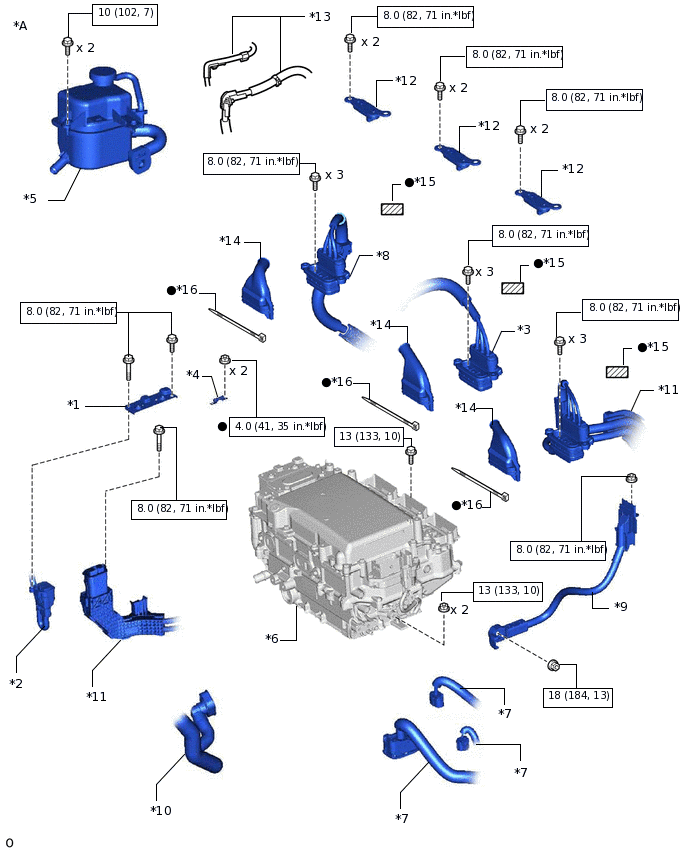

ILLUSTRATION
*A |
for AWD |
- |
- |
*1 |
CONNECTOR COVER ASSEMBLY |
*2 |
ENGINE WIRE |
*3 |
GENERATOR CABLE |
*4 |
HIGH VOLTAGE FUSE |
*5 |
INVERTER RESERVE TANK ASSEMBLY |
*6 |
INVERTER WITH CONVERTER ASSEMBLY |
*7 |
LOW VOLTAGE CONNECTOR |
*8 |
MOTOR CABLE |
*9 |
NO. 2 ENGINE ROOM WIRE |
*10 |
NO. 2 INVERTER COOLING HOSE ASSEMBLY |
*11 |
NO. 5 FLOOR WIRE |
*12 |
UPPER INVERTER COVER |
*13 |
WIRE HARNESS |
*14 |
WIRE HARNESS BOOT |
*15 |
INSULATING TAPE |
*16 |
TIE BAND |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |

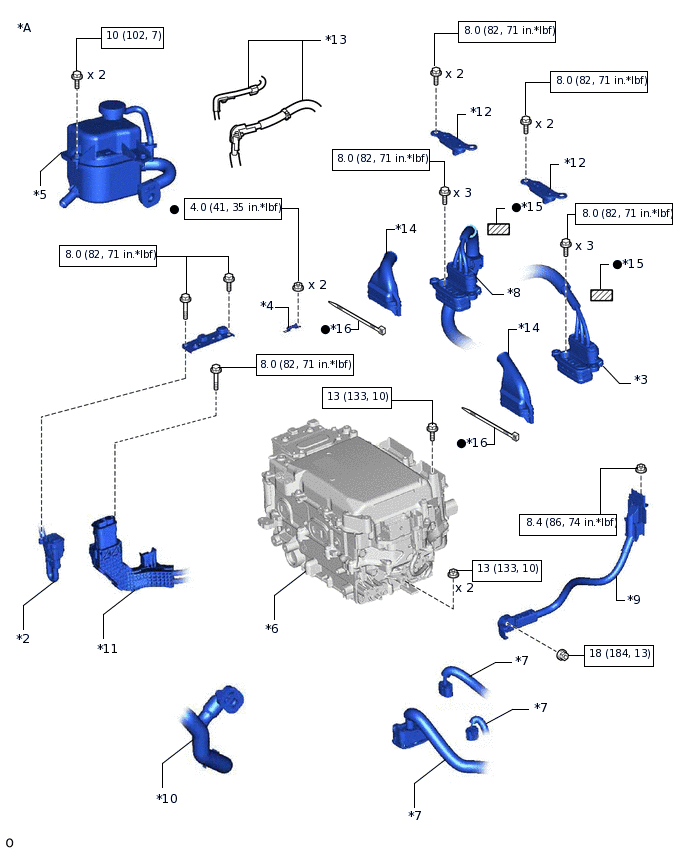

ILLUSTRATION
*A |
for 2WD |
- |
- |
*1 |
CONNECTOR COVER ASSEMBLY |
*2 |
ENGINE WIRE |
*3 |
GENERATOR CABLE |
*4 |
HIGH VOLTAGE FUSE |
*5 |
INVERTER RESERVE TANK ASSEMBLY |
*6 |
INVERTER WITH CONVERTER ASSEMBLY |
*7 |
LOW VOLTAGE CONNECTOR |
*8 |
MOTOR CABLE |
*9 |
NO. 2 ENGINE ROOM WIRE |
*10 |
NO. 2 INVERTER COOLING HOSE ASSEMBLY |
*11 |
NO. 5 FLOOR WIRE |
*12 |
UPPER INVERTER COVER |
*13 |
WIRE HARNESS |
*14 |
WIRE HARNESS BOOT |
*15 |
INSULATING TAPE |
*16 |
TIE BAND |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |

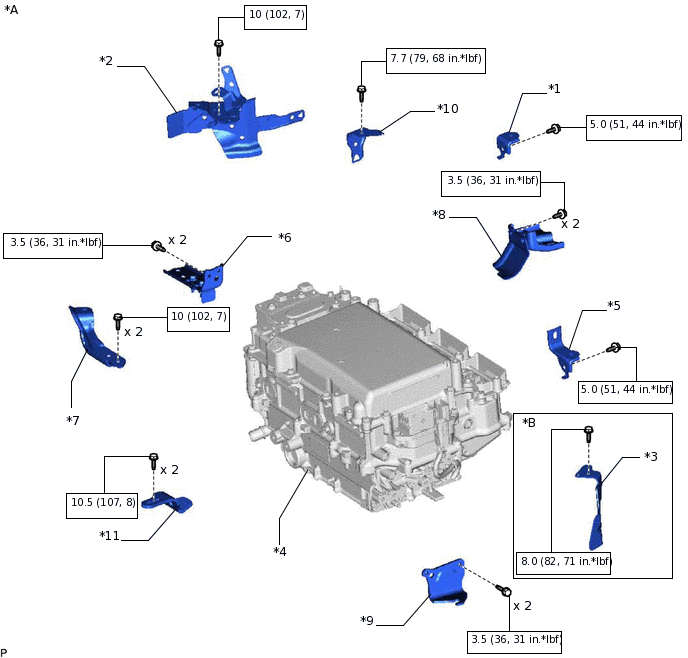

ILLUSTRATION
*A |
for AWD |
*B |
w/ Bracket |
*1 |
AIR CLEANER BRACKET |
*2 |
HYBRID INVERTER PROTECTOR ASSEMBLY |
*3 |
INVERTER PROTECTOR |
*4 |
INVERTER WITH CONVERTER ASSEMBLY |
*5 |
NO. 1 AIR CLEANER BRACKET |
*6 |
NO. 2 INVERTER BRACKET |
*7 |
NO. 2 INVERTER RESERVE TANK BRACKET |
*8 |
NO. 3 INVERTER BRACKET |
*9 |
NO. 4 INVERTER BRACKET |
*10 |
WIRE HARNESS CLAMP BRACKET |
*11 |
NO. 6 INVERTER BRACKET |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |

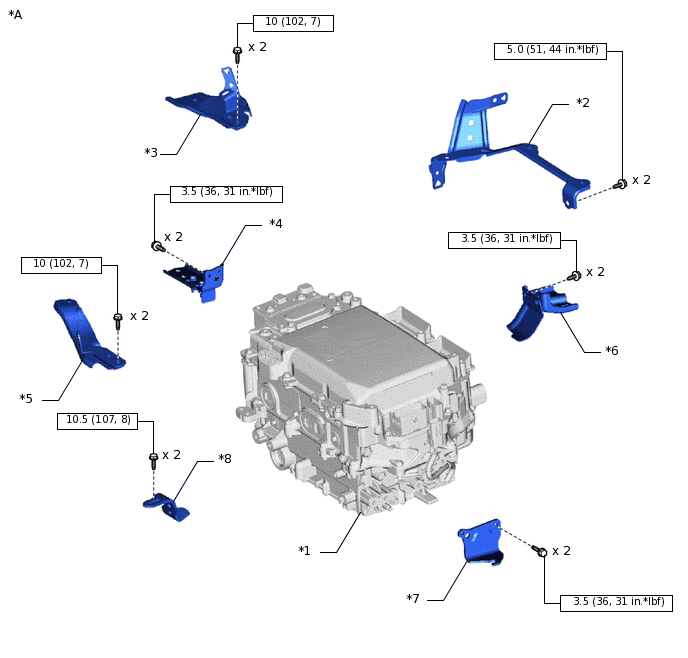

ILLUSTRATION
*A |
for 2WD |
- |
- |
*1 |
INVERTER WITH CONVERTER ASSEMBLY |
*2 |
NO. 1 AIR CLEANER BRACKET |
*3 |
NO. 1 INVERTER RESERVE TANK BRACKET |
*4 |
NO. 2 INVERTER BRACKET |
*5 |
NO. 2 INVERTER RESERVE TANK BRACKET |
*6 |
NO. 3 INVERTER BRACKET |
*7 |
NO. 4 INVERTER BRACKET |
*8 |
NO. 6 INVERTER RESERVE TANK BRACKET |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
