VANE PUMP (for 5L-E) DISASSEMBLY


  1. REMOVE POWER STEERING SUCTION PORT UNION


    1. B007R26

      Remove the bolt and the power steering suction port union.

    2. Using a screwdriver, remove the O-ring from the power steering suction port union.

  2. REMOVE FLOW CONTROL VALVE


    1. B007PG7

      Remove the pressure port union.

    2. Remove the O-ring from the pressure port union.

    3. Remove the flow control valve and the compression spring.

  3. REMOVE REAR VANE PUMP HOUSING


    1. B007P96

      Remove the 4 bolts and the rear vane pump housing.

    2. Remove the gasket.

    3. Remove the 2 O-rings from the rear vane pump housing.

  4. REMOVE REAR VANE PUMP SIDE PLATE


    1. Remove the wave washer from the rear vane pump side plate.

    2. B007UAM

      Remove the rear vane pump side plate.

  5. REMOVE VANE PUMP CAM RING

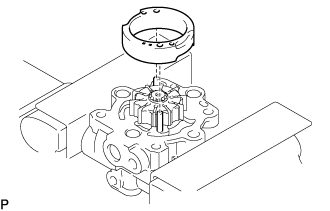

    1. B007U6K

      Remove the vane pump cam ring.

  6. REMOVE VANE PUMP ROTOR


    1. Remove the 10 vane pump plates.

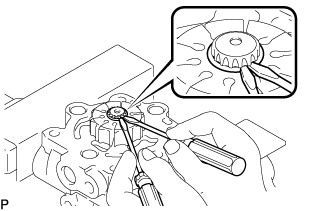

    2. B007UML

      Using 2 screwdrivers, remove the vane pump shaft snap ring from the vane pump shaft.

    3. Remove the vane pump rotor.

  7. REMOVE VANE PUMP SHAFT

  8. REMOVE VANE PUMP HOUSING OIL SEAL

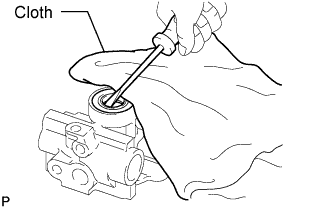

    1. B007Q6BE01

      Using a screwdriver, remove the vane pump housing oil seal.

      Note

      Be careful not to damage the front vane pump housing.
