AIRBAG SYSTEM


  1. CONSTRUCTION


    1. The front seat airbag assemblies are installed in the seat backs of the driver seat and the front passenger seat. Each front seat airbag assembly is a one-piece design, consisting of an inflator and a bag.

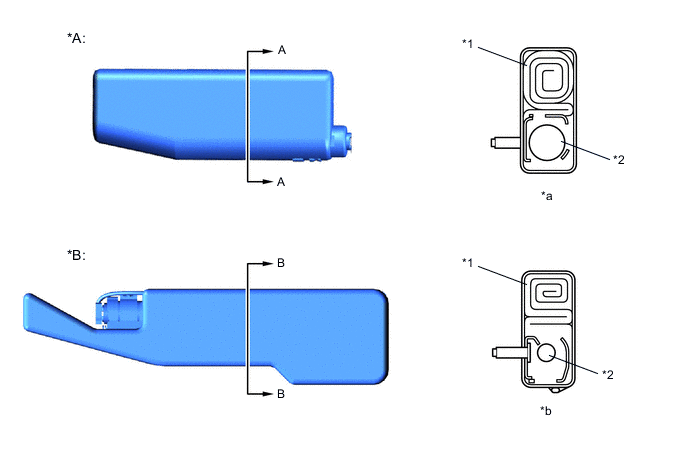

      A01RXONC01
      *A 1 Chamber Type *B 2 Chamber Type
      *1 Bag *2 Inflator
      *a A - A Cross Section *b B - B Cross Section
