REAR WIPER RUBBER REMOVAL

PROCEDURE

1. REMOVE REAR WIPER BLADE

   1.

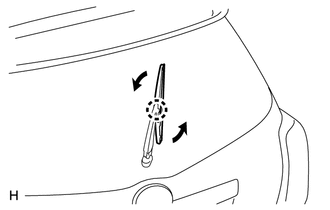

      Raise the wiper arm and then rotate the wiper blade to the position where the claw detaches with a "click" sound, as shown in the illustration.

      Note:

      Be careful not to damage the claw.

   2.

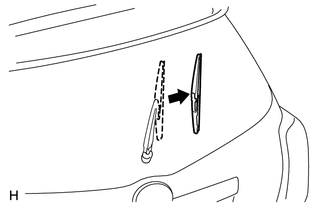

      Pull the wiper blade straight toward the right side of the vehicle to remove it from the wiper arm.

      Note:

      Do not fold the wiper arm with the wiper blade removed. The arm tip may damage the back door glass surface.

2. REMOVE REAR WIPER RUBBER

   1.

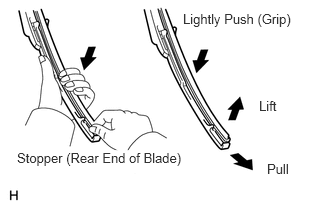

      Lift and pull the end of the wiper rubber protruding from the blade stopper as shown in the illustration to remove the wiper rubber.

      Note:

      Do not forcibly pull out the wiper rubber. The backing plates will be deformed or the blade claws will be damaged.

      Tip:

      Lightly pushing the rubber between the ends and middle allows it to be removed more easily.

   2. Remove the 2 backing plates.
