PARKING BRAKE PEDAL(for RHD) COMPONENTS

ILLUSTRATION

A005BUHE02

ILLUSTRATION

A005D1CE01
*a REAR NO. 1 HEATER REGISTER BEZEL
*b NO. 2 HYBRID BATTERY INTAKE DUCT

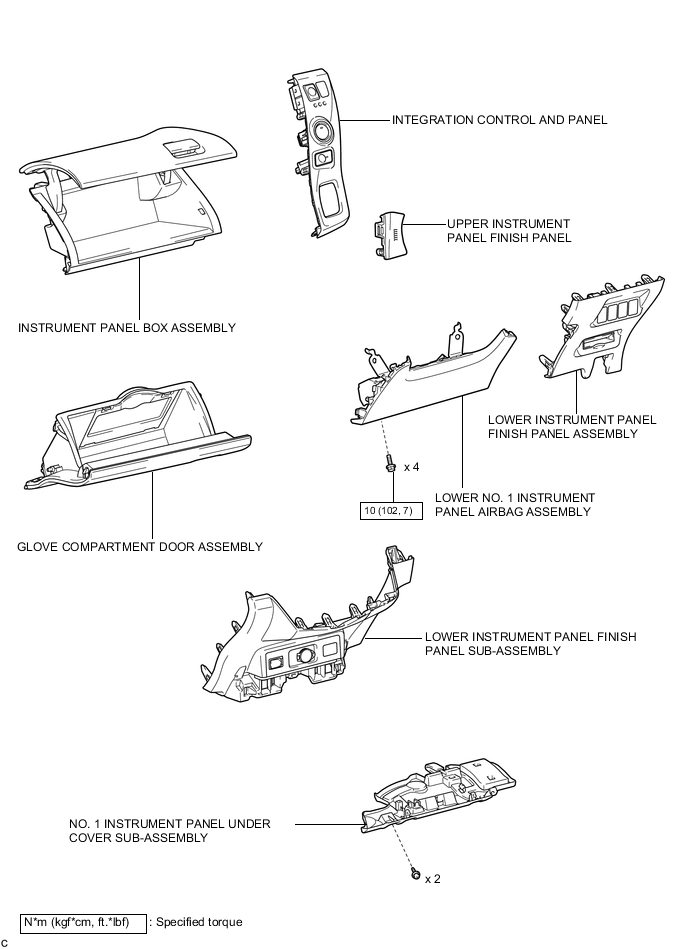

ILLUSTRATION

A005BLKE02

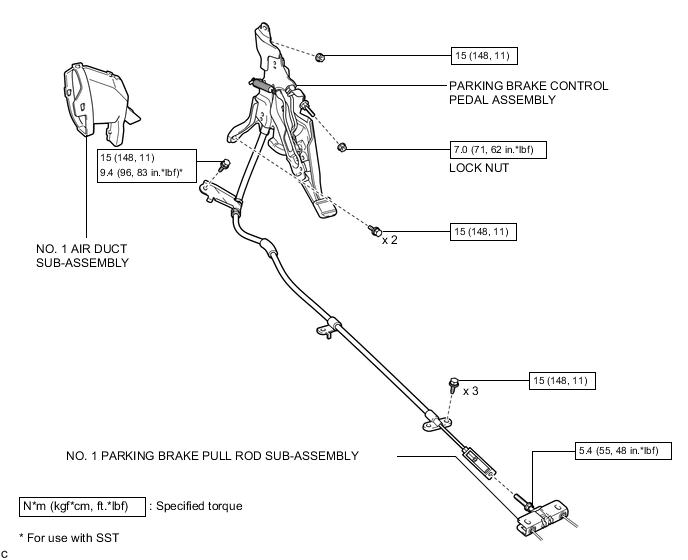

ILLUSTRATION

A005C7QE02

ILLUSTRATION

A005DGUE02
*1 PARKING BRAKE PEDAL ASSEMBLY
*2 ADJUSTING NUT
*3 NO. 1 PARKING BRAKE CABLE ASSEMBLY

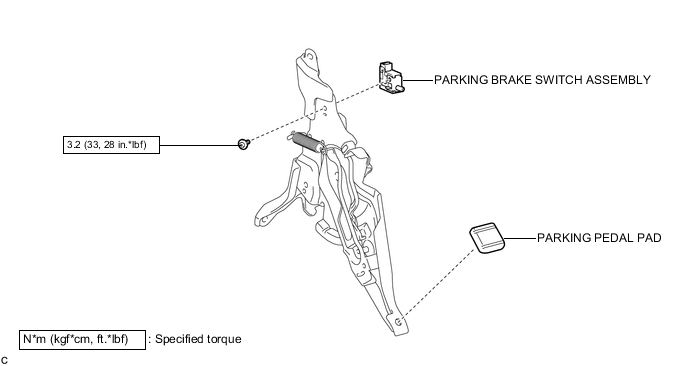

ILLUSTRATION

A005E7PE02
