AMPLIFIER ANTENNA(for Quarter) REMOVAL

PROCEDURE

1. REMOVE DECK BOARD ASSEMBLY

   Click here

2. REMOVE NO. 1 DECK BOARD

   Click here

3. REMOVE NO. 2 DECK BOARD

   Click here

4. REMOVE REAR DECK FLOOR BOX

   Click here

5. REMOVE DECK FLOOR BOX RH

   Click here

6. REMOVE TONNEAU COVER ASSEMBLY (w/ Tonneau Cover)

   Click here

7. REMOVE BACK DOOR SCUFF PLATE

   Click here

8. REMOVE REAR DOOR SCUFF PLATE RH

   Tech Tips

   Use the same procedure for the RH side and LH side Click here.

9. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH

   Tech Tips

   Use the same procedure for the RH side and LH side Click here.

10. REMOVE NO. 1 DECK TRIM COVER

    Tech Tips

    Use the same procedure for the RH side and LH side Click here.

11. REMOVE LUGGAGE HOLD BELT STRIKER ASSEMBLY

    Tech Tips

    Use the same procedure for the RH side and LH side Click here.

12. REMOVE FRONT DECK SIDE TRIM COVER RH

    Tech Tips

    Use the same procedure for the RH side and LH side Click here.

13. REMOVE NO. 1 CUP HOLDER

    Click here

14. DISCONNECT REAR NO. 1 SEAT OUTER BELT ASSEMBLY RH

    Tech Tips

    Use the same procedure for the RH side and LH side Click here.

15. DISCONNECT REAR NO. 2 SEAT OUTER BELT ASSEMBLY RH

    Tech Tips

    Use the same procedure for the RH side and LH side Click here.

16. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH

    Tech Tips

    Use the same procedure for the RH side and LH side Click here.

17. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY RH

    Tech Tips

    Use the same procedure for the RH side and LH side Click here.

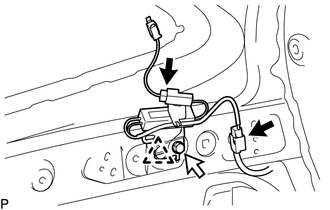

18. REMOVE NO. 2 AMPLIFIER ANTENNA ASSEMBLY




    1.

       Disconnect the 2 connectors.

    2. Remove the bolt.

    3. Disengage the clip to remove the No. 2 amplifier antenna assembly.
