CANVAS TOP ROOF SWITCH ASSEMBLY INSPECTION

PROCEDURE

  1. INSPECT SLIDE ROOF MOTOR SWITCH

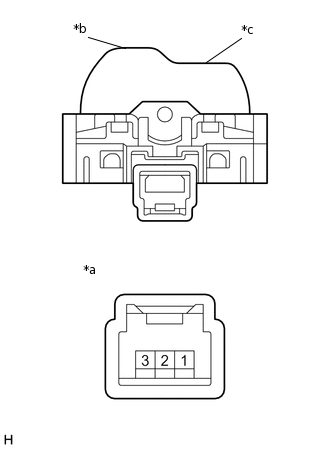

    1. B364768C01

      *a

      Component without harness connected

      (Slide Roof Motor Switch)

      *b

      Open switch

      *c

      Close switch

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection

      Condition

      Specified Condition

      1 - 2

      Open switch is pressed

      Below 1 Ω

      1 - 2

      Open switch is not pressed

      10 kΩ or higher

      3 - 2

      Close switch is pressed

      Below 1 Ω

      3 - 2

      Close switch is not pressed

      10 kΩ or higher

      If the result is not as specified, replace the slide roof motor switch.
