WASHER MOTOR(for Rear Side) REMOVAL

PROCEDURE

  1. REMOVE FRONT WHEEL RH

    Click here

  2. REMOVE FRONT FENDER LINER RH

    Click here

  3. DRAIN WINDSHIELD WASHER FLUID

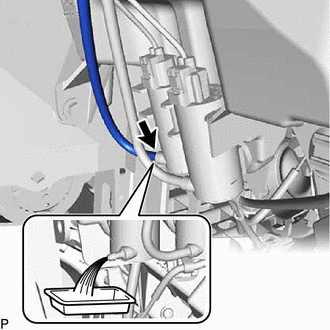

    1. E295048

      Disconnect the washer hose from the rear washer motor and pump assembly, and drain the windshield washer fluid.

      Tip:

      Use a container to collect the windshield washer fluid.

  4. REMOVE REAR WASHER MOTOR AND PUMP ASSEMBLY

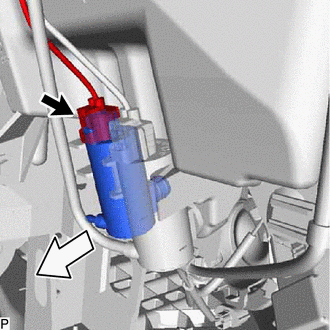

    1. E295049

      Disconnect the connector.

    2. Remove the rear washer motor and pump assembly as shown in the illustration.

  5. REMOVE REAR WASHER JAR BUSH

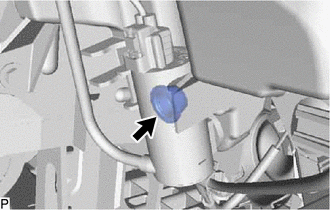

    1. E295399

      Remove the rear washer jar bush from the washer jar.
