ULTRASONIC SENSOR(for Rear) INSPECTION

PROCEDURE

  1. INSPECT NO. 2 ULTRASONIC SENSOR

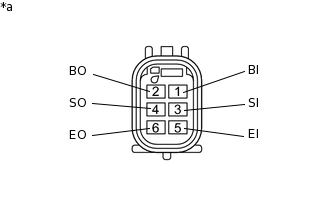

    1. E270770C01

      *a

      Component without harness connected

      (No. 2 Ultrasonic Sensor)

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection

      Condition

      Specified Condition

      1 (BI) - 5 (EI)

      Always

      10 kΩ or higher

      1 (BI) - 2 (BO)

      Always

      10 kΩ or higher

      3 (SI) - 4 (SO)

      Always

      Below 1 Ω

      5 (EI) - 6 (EO)

      Always

      Below 1 Ω

      If the result is not as specified, replace the No. 2 ultrasonic sensor.
