ENGINE OIL COOLER REMOVAL

PROCEDURE

  1. REMOVE EXHAUST MANIFOLD CONVERTER SUB-ASSEMBLY

    Click here

  2. DRAIN ENGINE OIL

    Click here

  3. DRAIN ENGINE COOLANT

    Click here

  4. REMOVE OIL COOLER ASSEMBLY

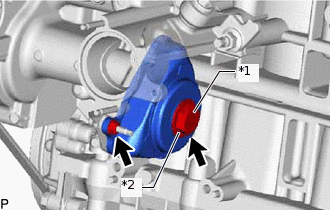

    1. A328458C01

      *1

      Union Bolt

      *2

      Seal Washer

      Remove the nut, union bolt, seal washer and oil cooler assembly.

    2. Remove the 3 gaskets from the oil cooler assembly.
