PERSONAL LIGHT REMOVAL

PROCEDURE

  1. REMOVE MAP LIGHT SUB-ASSEMBLY

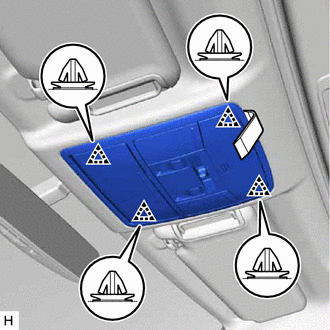

    E331157

    1. Using moulding remover D, detach the 4 clips.

    2. Disconnect the connector and remove the map light sub-assembly.
